MacDon PW8 - Opening Left Endshield; Closing Left Endshield

214658 20 Revision A
3.3.1 Opening Left Endshield
1006846
A
B

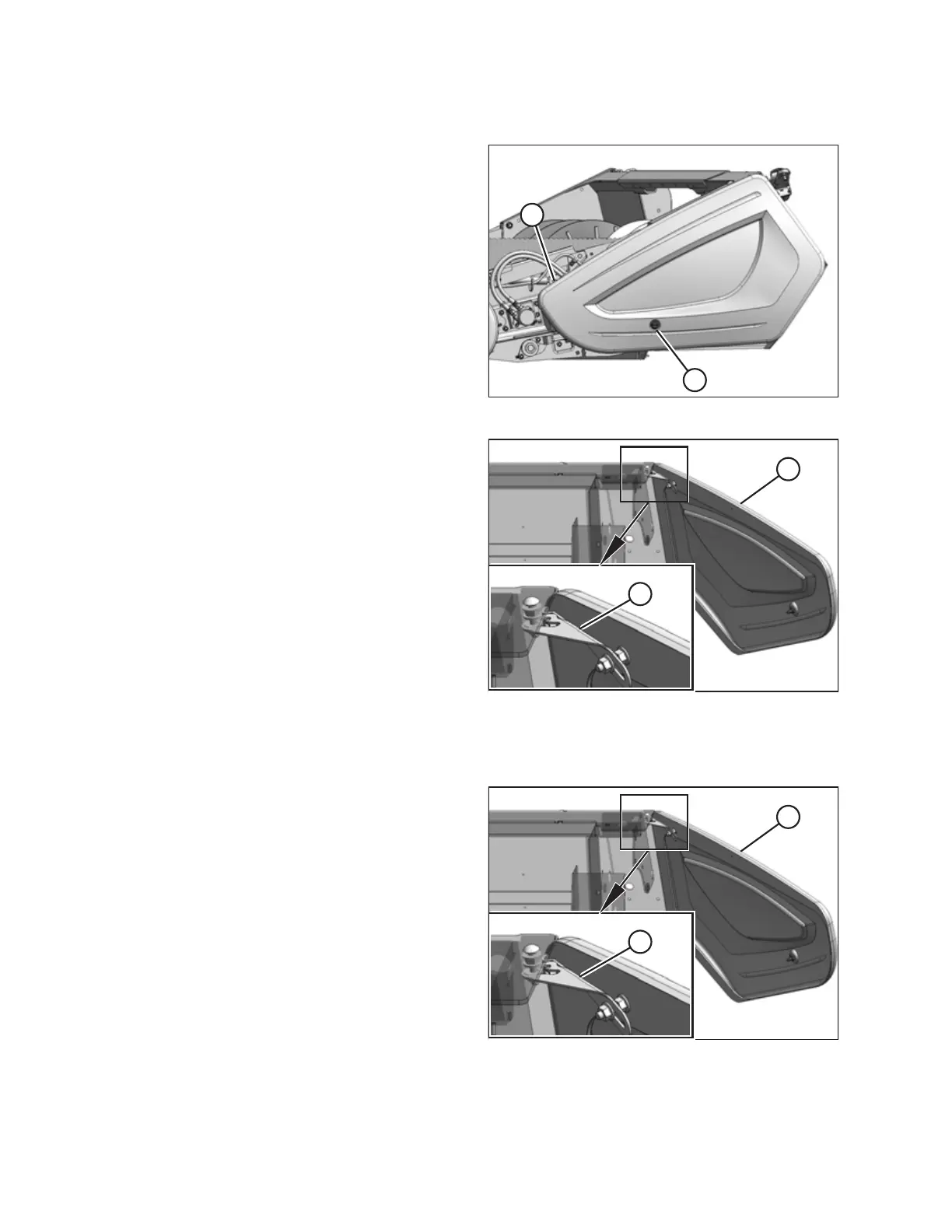

Figure 3.11: Endshield Closed
1. Use a slotted screwdriver to unlock endshield (B) by
turning latch (A) counterclockwise until it stops (slightly
more than one half turn).
1006845
A
B
Figure 3.12: Endshield Open
2. Grasp forward end of endshield (A) and pull open until
support (B) engages and holds endshield in open
position.
3.3.2 Closing Left Endshield
1006845
A
B
Figure 3.13: Endshield Support
1. Move endshield (A) slightly so support (B) can be
moved out of the locked position.
