MacDon PW8 - Page 29

214658 21 Revision A
1006857
A
B
C
D
E

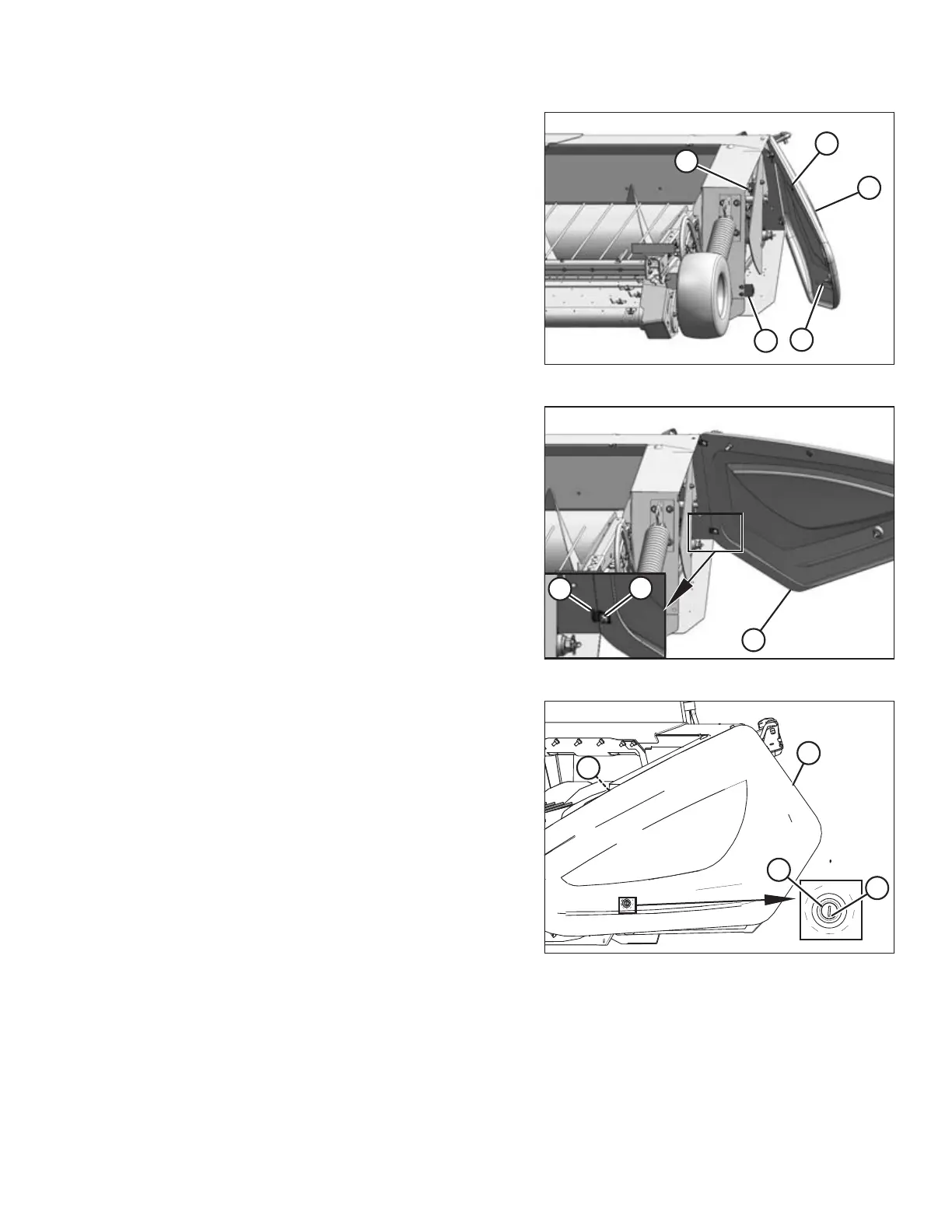

Figure 3.14: Endshield
2. Close endshield (A) ensuring magnet (B) and stop (C)
in header frame are aligned. This will ensure that
latch (D) aligns with receptacle (E).
NOTE:
Latch (D) and magnet (B) positions are factory-set and
should not require adjustment.
1006955
A
B
C
Figure 3.15: Endshield Adjustment
3. If front of endshield needs to be raised or lowered,
loosen nuts (B) on clips (C) at the back of the
endshield (A), and reposition the endshield. Tighten the
nuts (B).
IMPORTANT:
Do NOT overtighten nuts (B). Overtightening can
damage the endshield.
1022194
A
C
D
B
Figure 3.16: Endshield Closed
4. Close endshield (D) and use a slotted screwdriver to
turn latch (A) clockwise until it stops (slightly more than
one-half turn).
NOTE:
When latch is fully engaged, the slot will align with
notch (C), and the endshield will draw tightly against the
header.
5. Check that magnet (B) on endshield is against the
header endsheet and aligned with the cutout in the
frame, and that latch (A) is engaged.
UNLOADING THE HEADER
