5.4 Attaching to Versatile Combine
DANGER
To avoid bodily injury or death from unexpected startup of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.

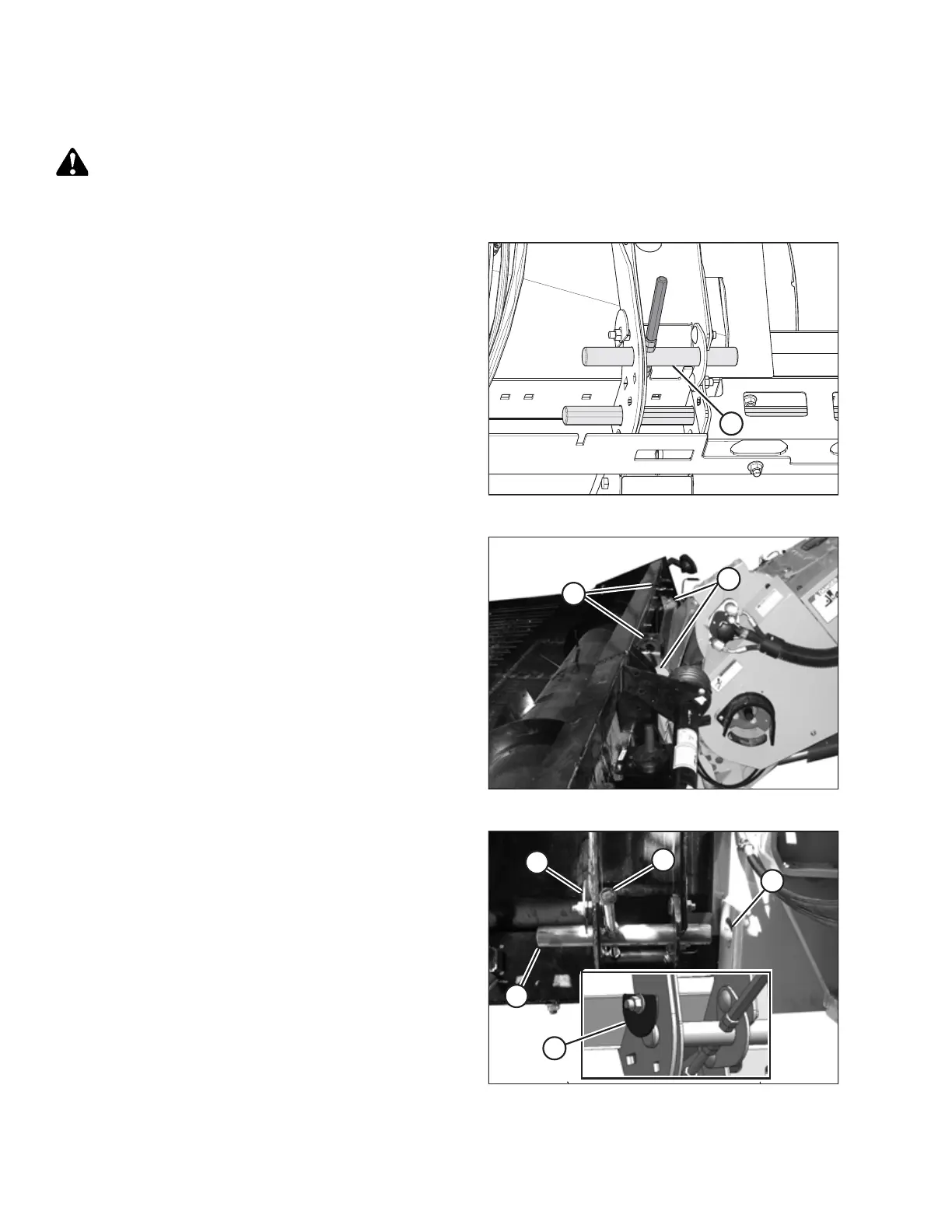

Figure 5.26: Locking Pins Retracted
1. Check that pins (A) at lower corners of header opening
are retracted.
Figure 5.27: Picking up Header
2. Drive combine slowly up to header until feeder house
posts (A) are directly under the header top brackets (B).
3. Raise feeder house to lift header, ensuring posts (A) are
properly engaged around header frame (B).
4. Position header slightly off the ground, stop the engine,
and remove the key from the ignition.
Figure 5.28: Feeder House Lock
5. Grasp handle (A) and slide pin (B) into feeder house
receptacle (C) until pin stop (D) drops down to lock the
pin (see inset). Ensure pin is engaged on the opposite
side of the feeder house.
6. If pin (B) does not align with feeder house
receptacle (C), or if alignment of the header pan and
bottom of feeder house opening is unacceptable,
reposition the top beam by performing Step 7, page 67
to Step 12, page 68.
NOTE:
If pin aligns with feeder house receptacle (C), proceed
to Step 14, page 68.
ATTACHING HEADER TO COMBINE
