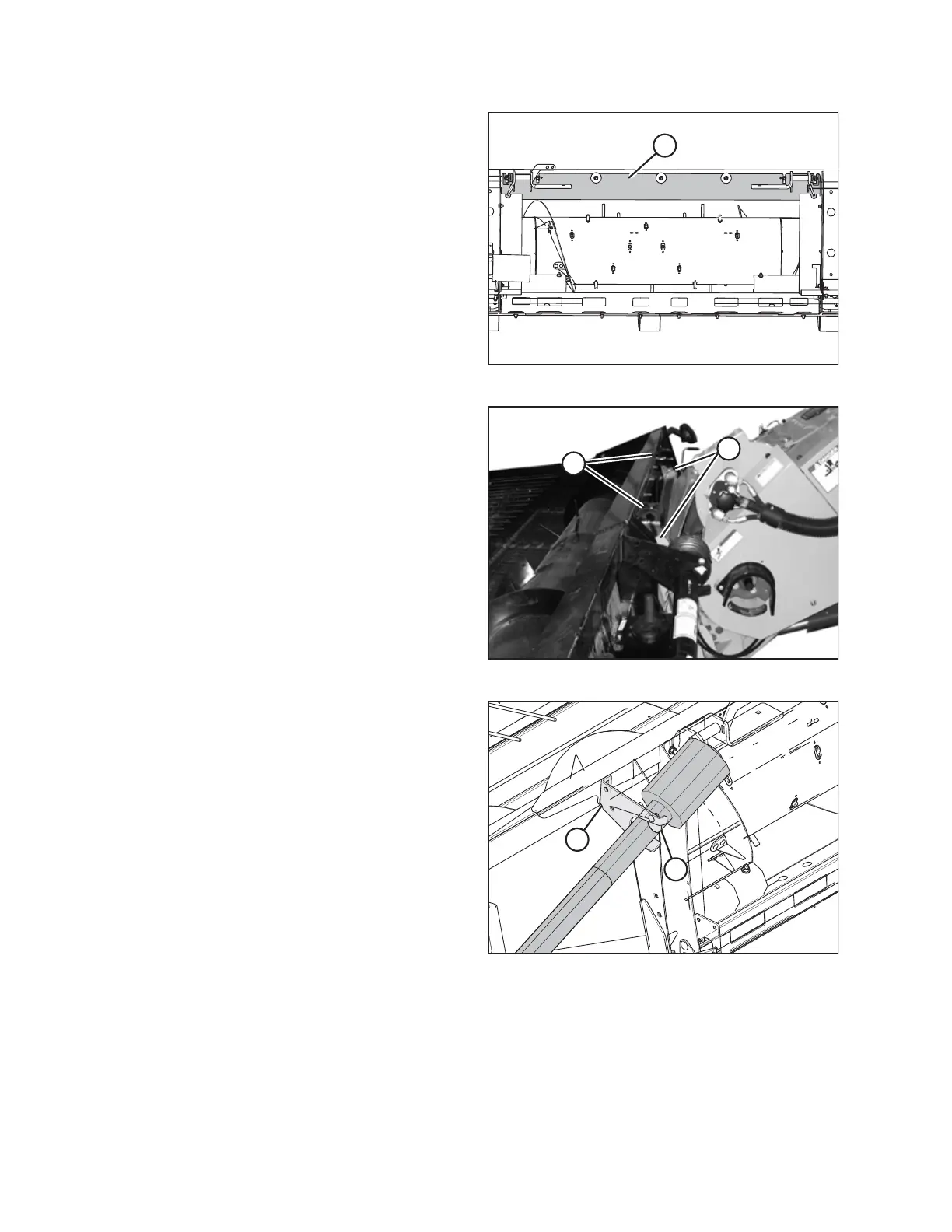

Figure 5.32: Top Beam (Rear View)
11. Move support channel (A) according to measurement in
Step to achieve proper alignment of locking pin and
feeder house receptacle. Refer to Figure 7, page 67.
12. Tighten all bolts.
Figure 5.33: Picking up Header
13. Raise feeder house to lift header, ensuring posts (A) are
properly engaged around the header frame (B).
Figure 5.34: Driveline in Storage Position
14. Rotate disc (B) on header driveline storage hook (A),
and remove the driveline from the hook.
ATTACHING HEADER TO COMBINE
