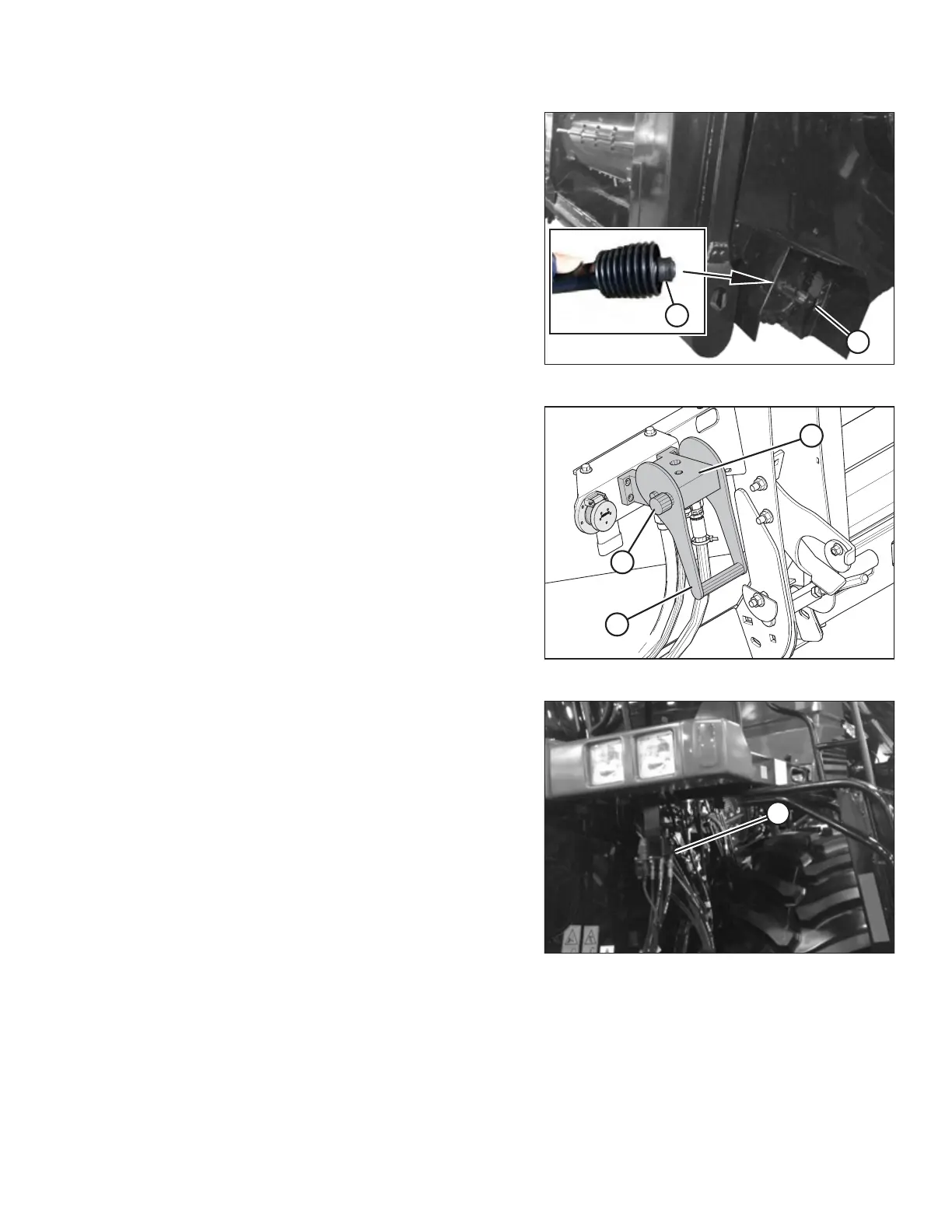

Figure 5.35: Driveline
15. Pull back collar (A) at the end of the driveline and push
onto combine output shaft (B) until the collar locks.
1013868
A
B
C
Figure 5.36: Coupler Lock
16. Open cover (A) on header receptacle.
17. Push in lock button (B) and pull handle (C) upward to
fully open position.
1013999
A
Figure 5.37: Versatile Coupler
18. Remove coupler (A) from combine and clean mating
surfaces.
