6.3.2 Adjusting Rear Draper Belt Tension

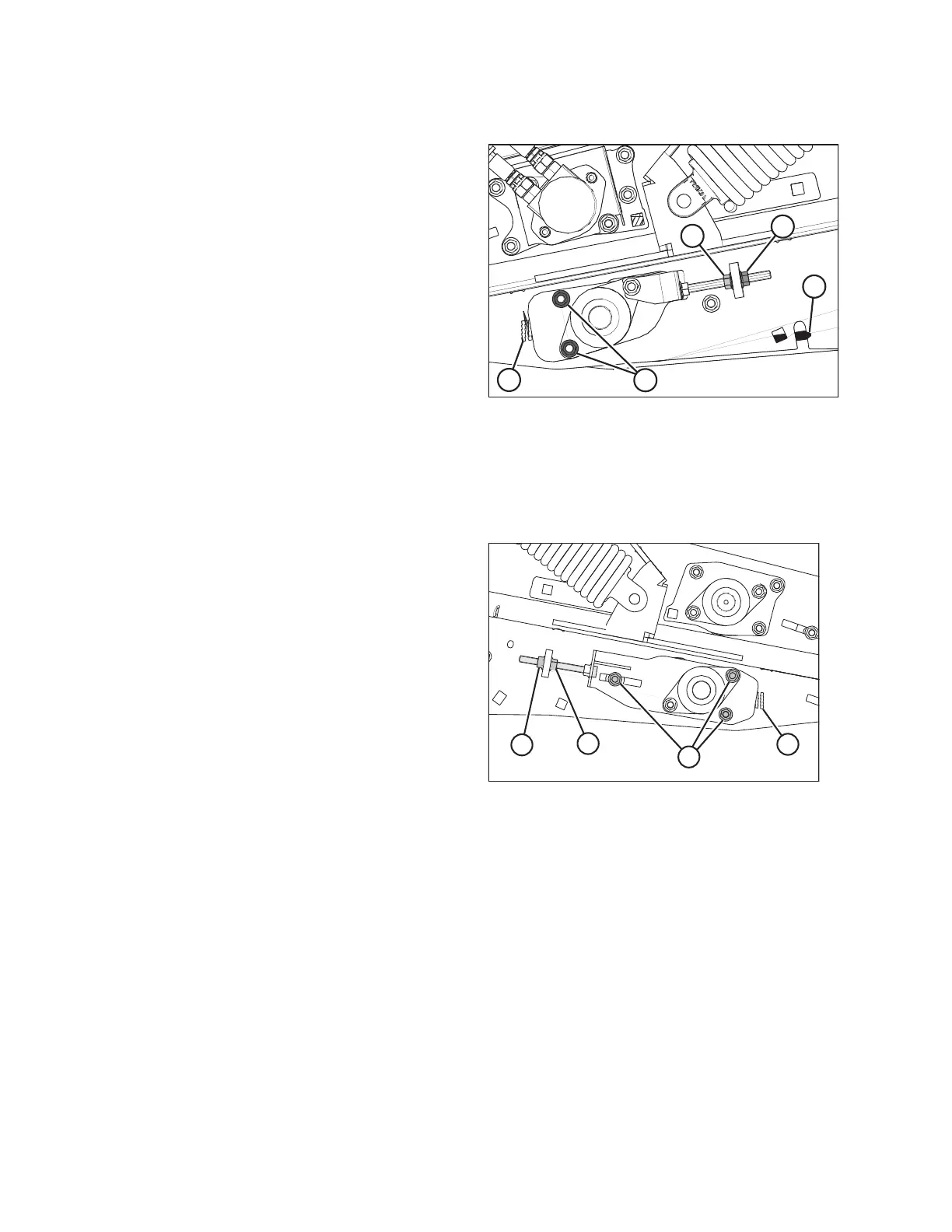

Figure 6.134: Left Side Rear Deck
1. Loosen two clamp bolts (A) on the left side.
2. Loosen jam nut (B).
3. Turn adjuster nut (C) to set draper tension. Proper
tension is achieved when the draper lines up with
indicator notch (D).
IMPORTANT:
Do NOT tighten draper above the indicator notch (D).
Drapers only need to be tight enough to prevent
slippage.
Overtightening drapers may result in the following:
• Joining bolts pulling out of draper
• Damage to the rollers or bearings
• Twisting and wrinkling of drapers
4. Tighten clamp bolts (A) and jam nut (B).
5. Note the position of indicator (E) and set the right side
to the same position.
Figure 6.135: Right Side Rear Deck
6. Loosen three clamp bolts (A) on the right side.
7. Loosen jam nut (B).
8. Turn adjuster nut (C) until the position of the indicator
notch (D) is exactly the same as the left side.
9. Tighten clamp bolts (A) and jam nut (B).
