MacDon PW8 - Header Dimensions

214658 27 Revision A
3.8 Extending Hold-Down to Field/Working Position
Extend the hold-down into the working position as follows:
1007671
A
B

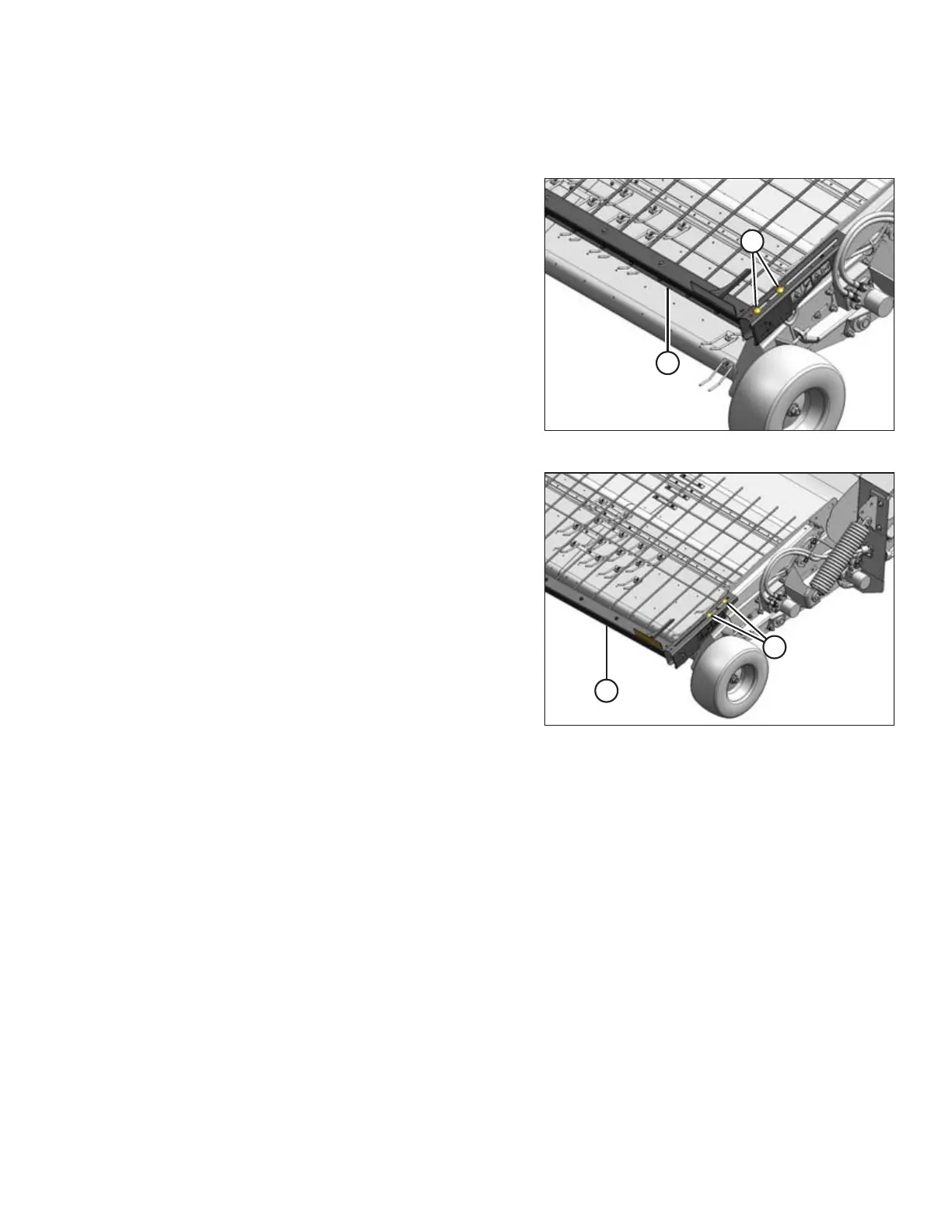

Figure 3.30: Left Side Hold-Down
1. If necessary, lift hold-down (A) slightly to gain access to
bolts (B) inside hold-down arms.
NOTE:
When working under the hold-down, lower the safety
props and engage the securing pins.
2. Loosen four bolts (B) (two per side) in hold-down frame
with an 18 mm socket wrench.
1007697
A
B
Figure 3.31: Left Side Hold-Down
3. Pull the hold-down frame (A) fully forward.
4. Tighten bolts (B) in hold-down arms.
UNLOADING THE HEADER
