214658 31 Revision A
4 Reconfiguring Headers
To minimize setup, PW8 Combine Pick-Up Headers are factory configured for a particular combine make, model,
and feeder house size. This chapter describes how to modify the header to accommodate the following combine
models and feeder house sizes.
Reconfiguring the headers is more easily accomplished if the header is not attached to the combine.
• Case 1156 mm (45.5 in.) – refer to 4.2 Configuring Headers for Case IH, page 38
• John Deere 1670 mm (65 in.) – refer to 4.1 Configuring Headers for John Deere, page 31
• New Holland 1016 mm (40 in.) – refer to 4.4 Configuring Headers for New Holland CR, page 47
• New Holland 1524 mm (60 in.) – refer to 4.3 Configuring Headers for New Holland CX, page 41
4.1 Configuring Headers for John Deere
PW8 Pick-Up Headers are configured at the factory for John Deere combine models with a 1397 mm (55 in.) feeder
house. These procedures describe how to modify the header for models with a 1650 mm (65 in.) feeder house.
4.1.1 Moving Stripper Assemblies
To reposition the stripper assemblies for a larger header opening, follow these steps:

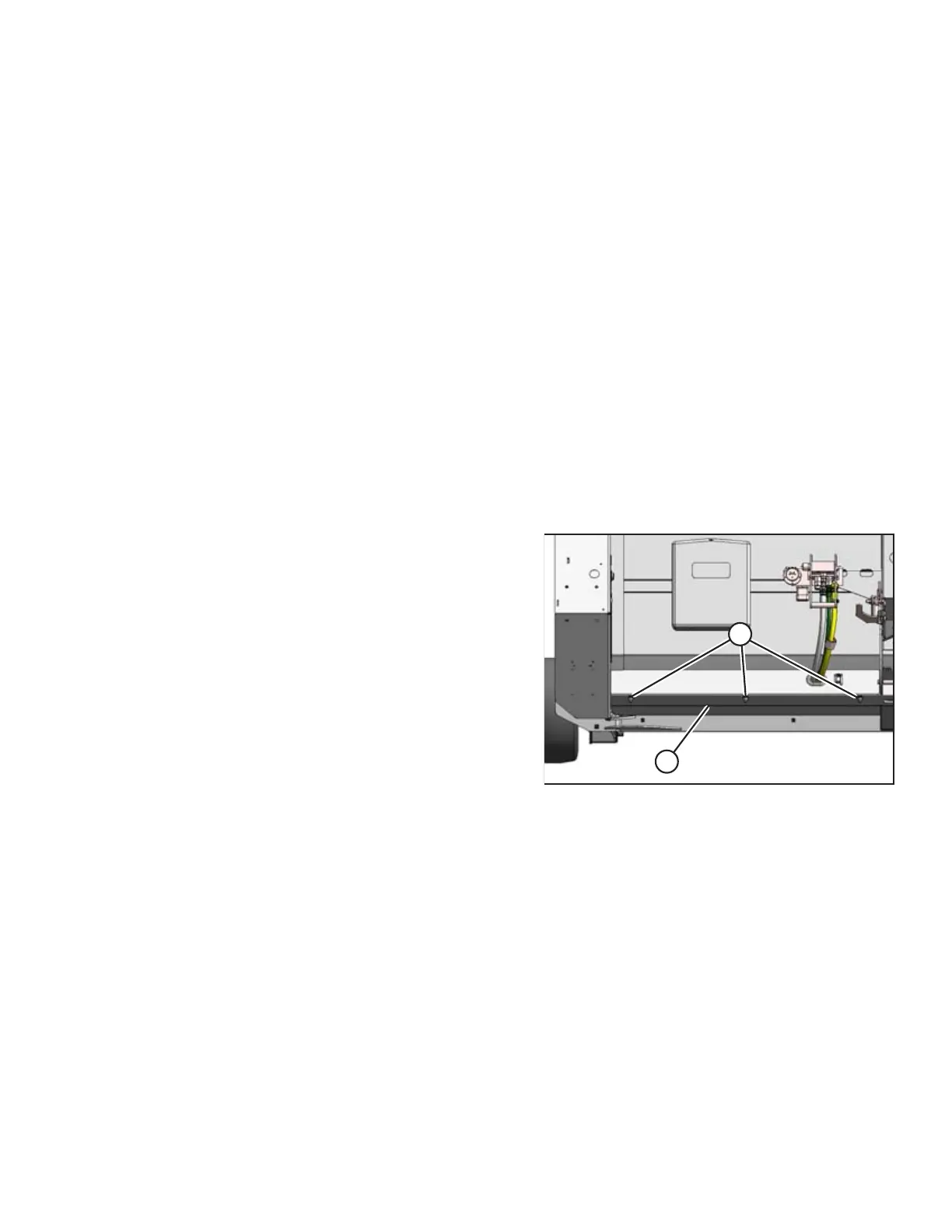

Figure 4.1: Left Cover – Right Side Opposite
1. Loosen three bolts (A) and remove cover (B) on both
sides of the header to expose the stripper assembly
attachment hardware.
