4.2 Configuring Headers for Case IH
PW8 Pick-Up Headers are configured at the factory for Cas IH combine models with a 1372 mm (54 in.) feeder
house. These procedures describe how to modify the header for models with a 1156 mm (46 in.) feeder house.
4.2.1 Moving Stripper Assemblies
To reposition the stripper assemblies for a narrower feeder house opening, follow these steps:
10117471011747
A
B

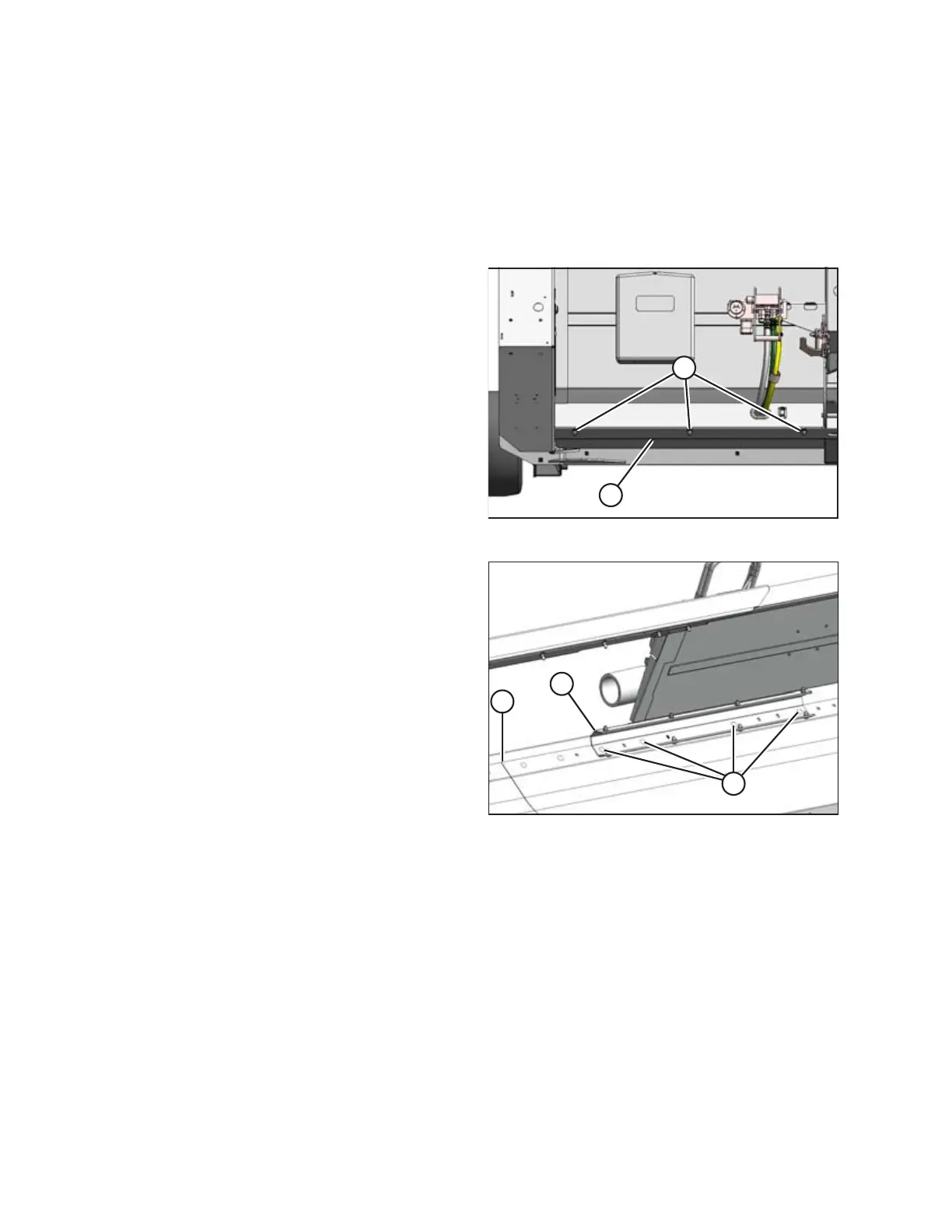

Figure 4.16: Left Cover – Right Side Opposite
1. Loosen three bolts (A) and remove cover (B) on both
sides of the header to expose the stripper assembly
attachment hardware.
1014240
B
C
A
Figure 4.17: Left Stripper – Narrow Opening
2. Remove the four bolts (A) attaching left stripper
assembly (B) to the frame, left of the header
centerline (C).
NOTE:
For clarity, auger not shown in illustration at right.
NOTE:
The centerline is located where the header pans meet.
