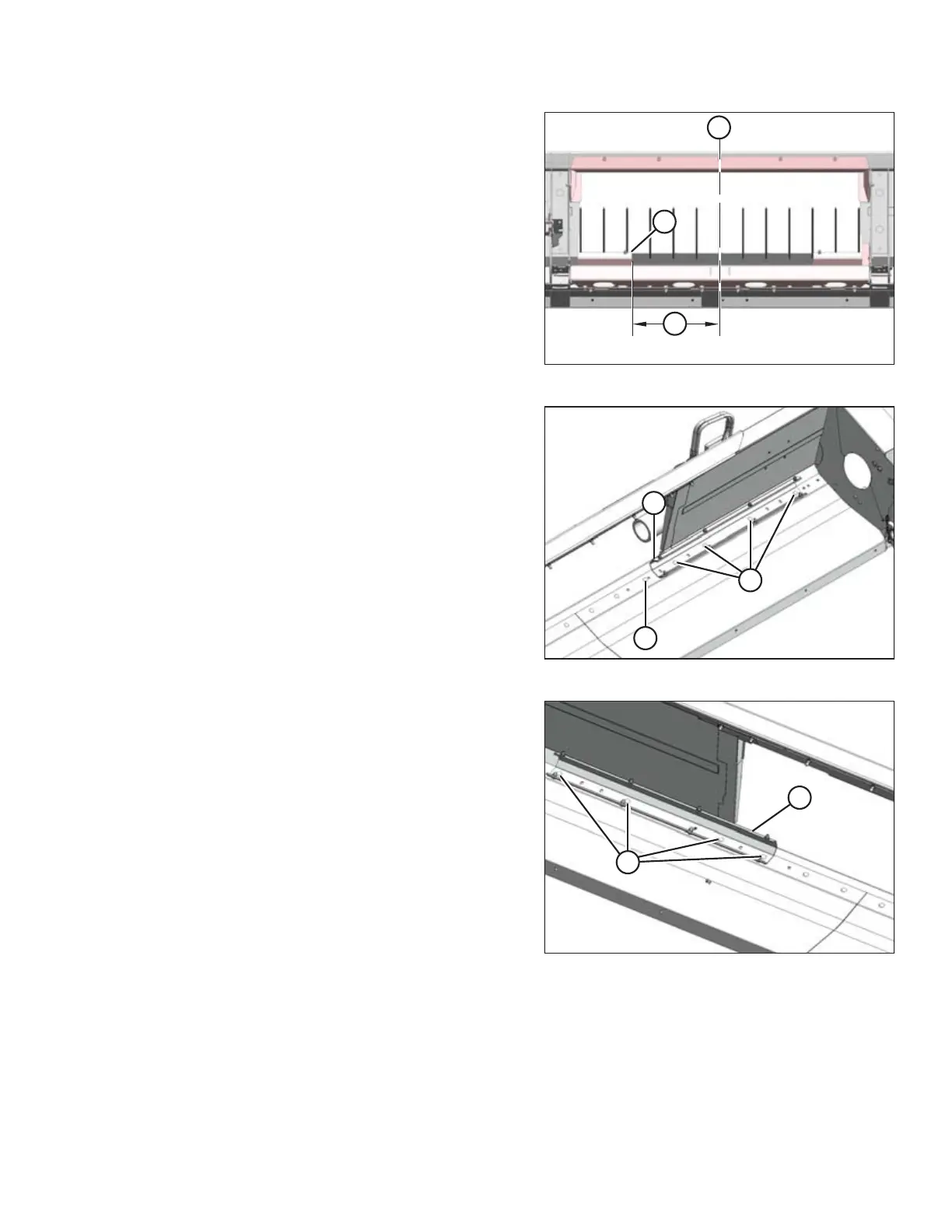

Figure 4.18: Narrow Opening
3. Move the left stripper assembly (A) inboard so that the
distance (B) from the stripper assembly to the header
centerline (C) is 578 mm (22-3/4 in.).
NOTE:
The centerline is located where the header pans meet.
1014244
B
C
A
Figure 4.19: Left Stripper – Wide Opening
4. Reinstall the four bolts (A) where the stripper
assembly (B) mounting holes line up with the frame.
Tighten bolts.
1014241
B
A
Figure 4.20: Right Stripper
5. Remove four bolts (A) attaching right stripper
assembly (B) to the frame.
