3.9 Adjusting Transport Lights
Position the transport lights so they are perpendicular to the endsheet.
DANGER
To avoid bodily injury or death from unexpected startup of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
1. Transport lights should be perpendicular to the endsheet. If repositioning is required, swivel the lights with
hand force.

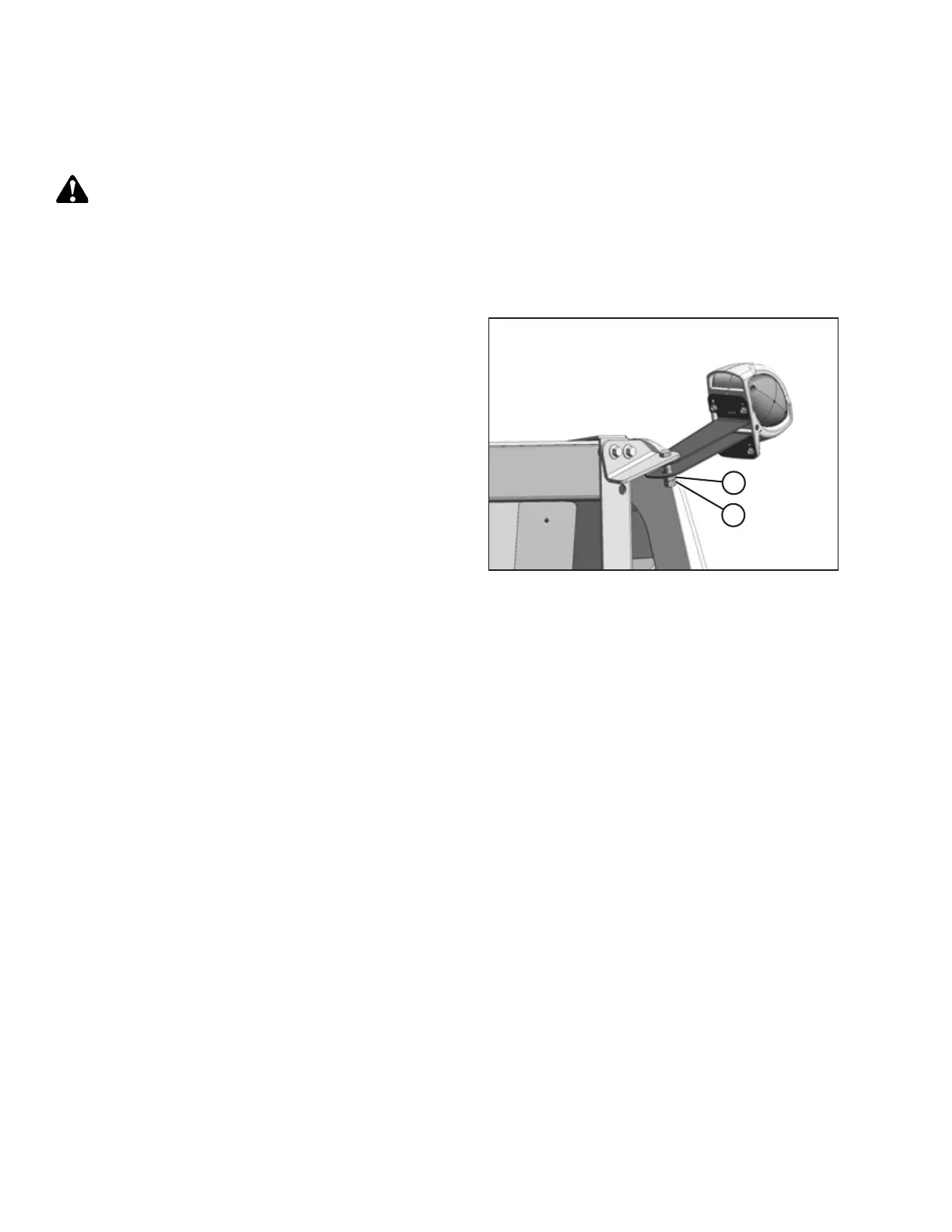

Figure 3.32: Transport Light
2. If the swivel is too loose or too tight, adjust jam nut (A)
and turn nut (B) so the light maintains its position and
can be moved with hand force.
3. Tighten jam nut (A). Do NOT overtighten.
UNLOADING THE HEADER
