214658 18 Revision A
3.3 Removing Shipping Stands
The removable stands are painted yellow.
CAUTION
Shipping stands are extremely heavy. Use caution when detaching shipping stands.
NOTE:
Unless otherwise specified, discard stands as well as all shipping material and hardware.

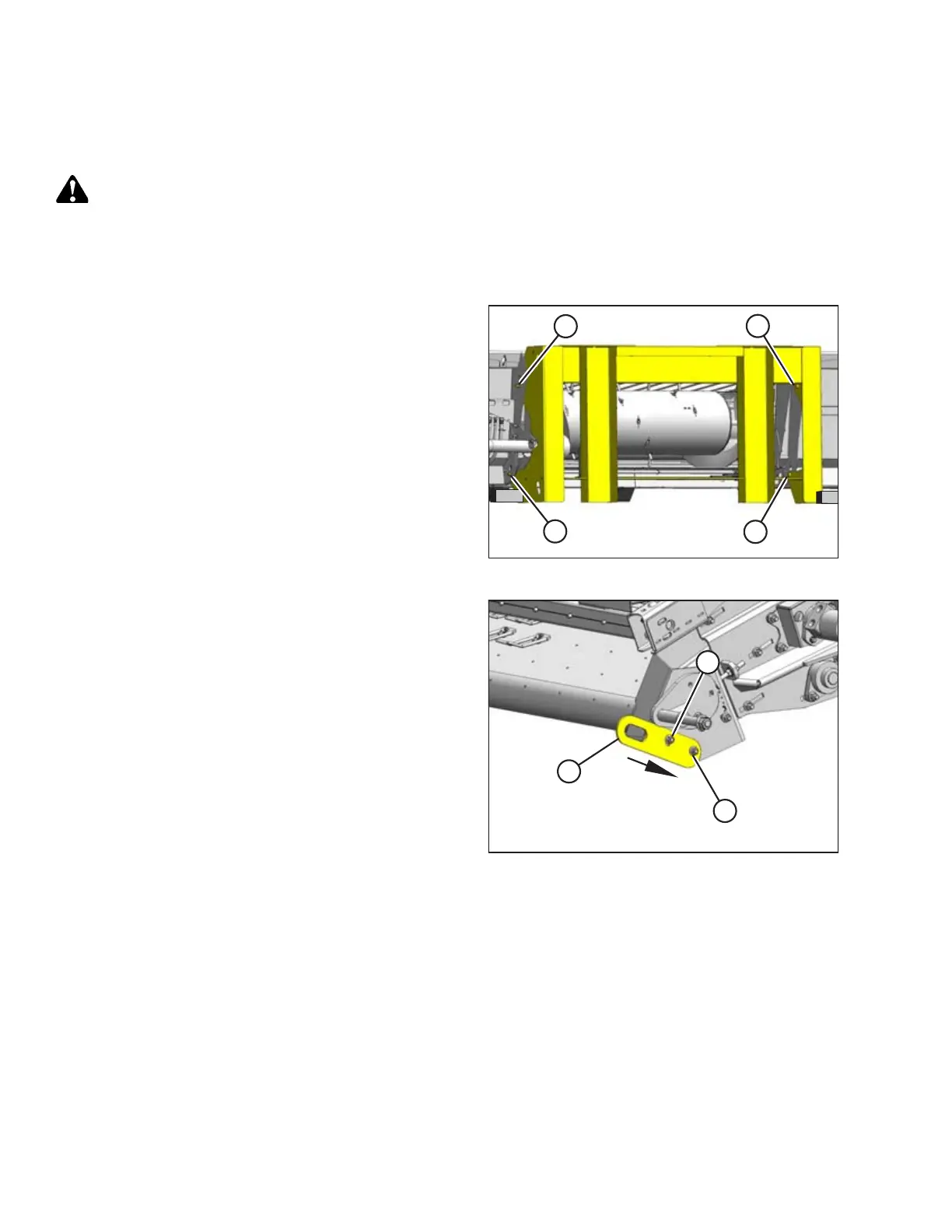

Figure 3.6: Shipping Stand
1. Remove the two bolts (A) near the top of the stand and
allow the stand to rotate aft until it rests on the ground.
2. Remove the two lower bolts (B) and remove stand.
Figure 3.7: Shipping Lug
NOTE:
Wheel not shown for clarity.
3. Remove bolt (A) from lifting lug (B).
4. Loosen bolt (C) and slide lug (B) in direction of arrow
until bolt (C) disengages slot in header.
5. Remove lug from opposite end of header.
UNLOADING THE HEADER
