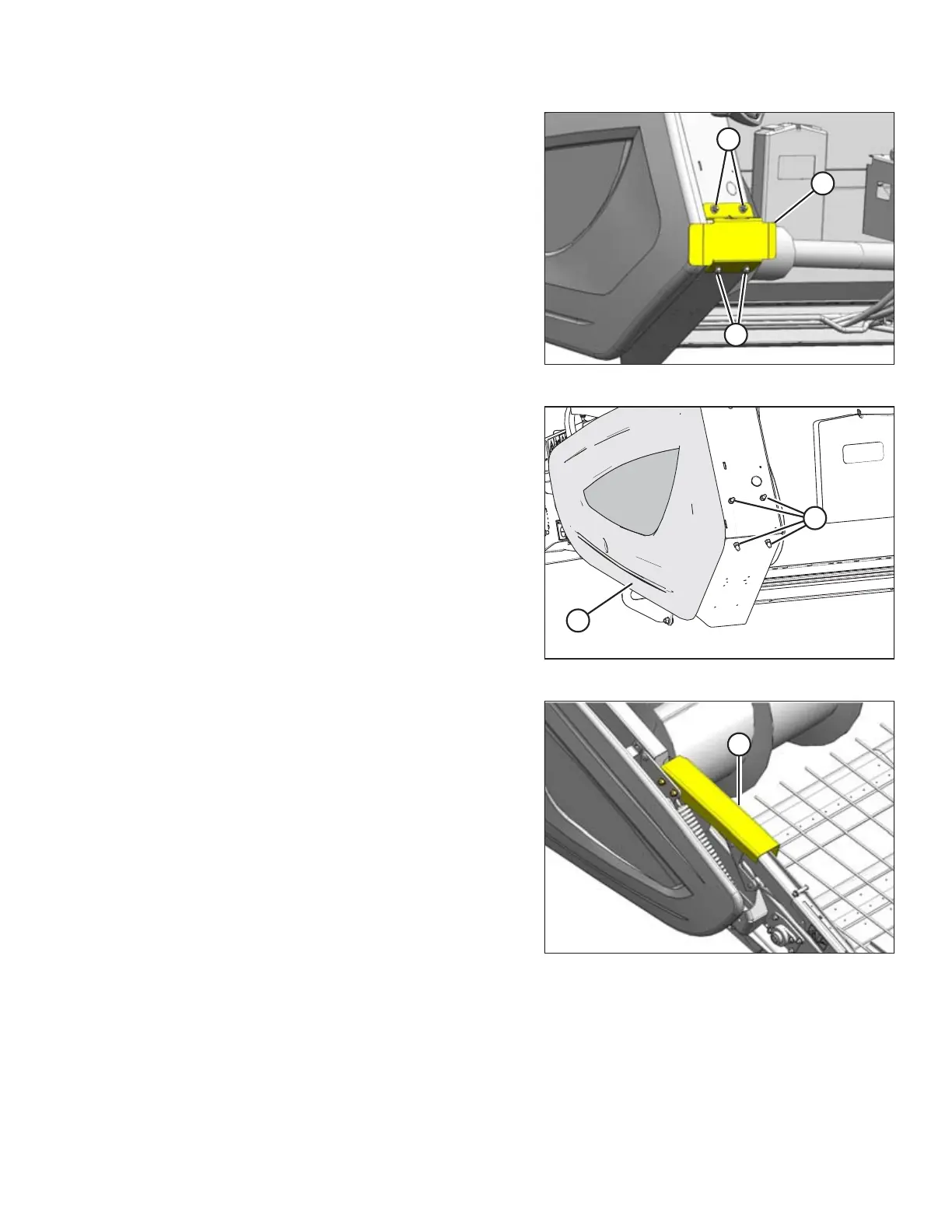

Figure 3.8: Shipping Bumper
6. Remove two nuts (A).
7. Loosen two nuts (B) and remove bumper (C).
1011522
A
B
Figure 3.9: Bumper Bolts
8. Open the left endshield (A). Refer to 3.3.1 Opening Left
Endshield, page 20.
9. Remove four nuts and bolts (B).
10. Close endshield. Refer to 3.3.2 Closing Left Endshield,
page 20.
1014341
A
Figure 3.10: Deck Shipping Brace
NOTE:
The shipping brace (A) on the hold-down will be
removed after the header is attached to the combine.
UNLOADING THE HEADER
