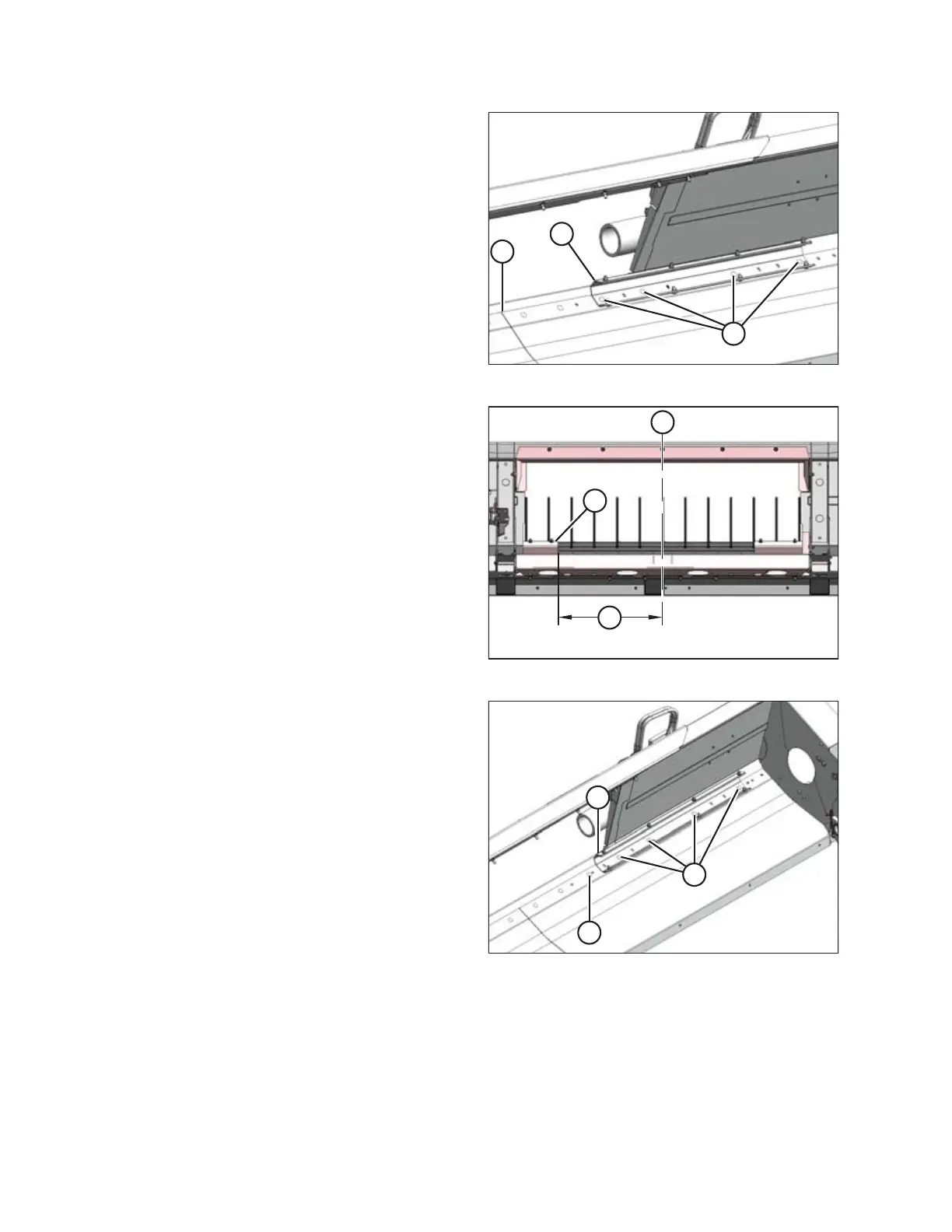

Figure 4.2: Left Stripper – Narrow Opening
2. Remove the four bolts (A) attaching left stripper
assembly (B) to the frame, left of the header
centerline (C).
NOTE:
For clarity, auger not shown in illustration at right.
NOTE:
The centerline is located where the header pans meet.
1011754
A
B
C
Figure 4.3: Left Stripper – Wide Opening
3. Move left stripper assembly (A) outboard so the
distance (B) from the stripper assembly to header
centerline (C) is 700 mm (27-9/16 in.).
NOTE:
The centerline is located where the header pans meet.
1014244
B
C
A
Figure 4.4: Left Stripper – Wide Opening
4. Reinstall the four bolts (A) where the stripper
assembly (B) mounting holes line up with the frame.
Tighten bolts.
5. Install M12 x 30 carriage bolt (C) and nut (provided in
hardware bag) in the existing hole.
RECONFIGURING HEADERS
