214658 65 Revision A

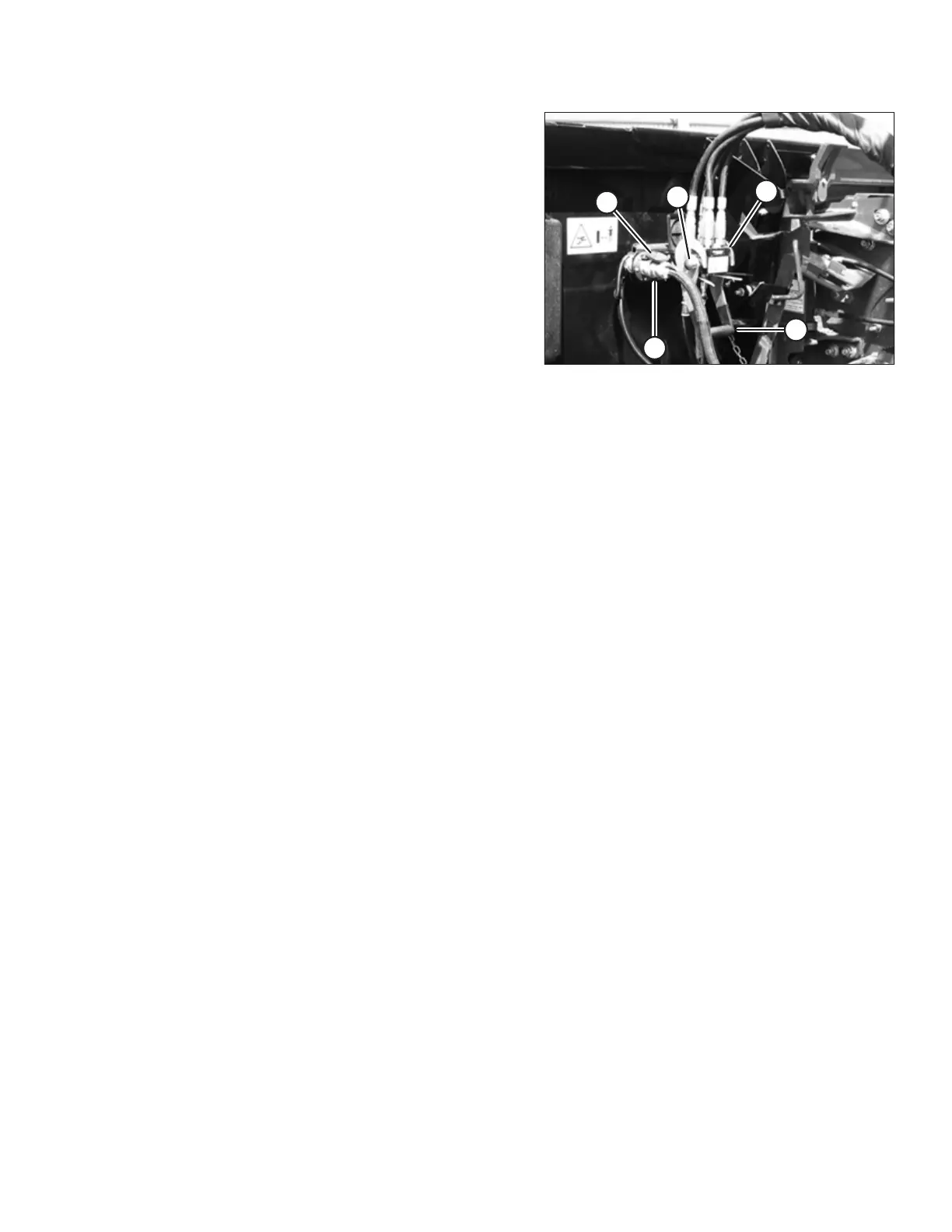

Figure 5.25: Attaching Coupler
13. Position coupler onto header receptacle (A) and push
handle (B) downward to engage pins into receptacle.
14. Push handle (B) to closed position until lock button (C)
snaps out.
15. Open cover (D) on header electrical receptacle.
16. Remove electrical connector (E) from combine.
17. Align lugs on electrical connector (E) with slots in
header receptacle, push connector onto receptacle, and
turn collar on connector to lock it in place.
18. Remove draper deck shipping braces. Refer to 5.5
Removing Deck Shipping Braces, page 71.
ATTACHING HEADER TO COMBINE
