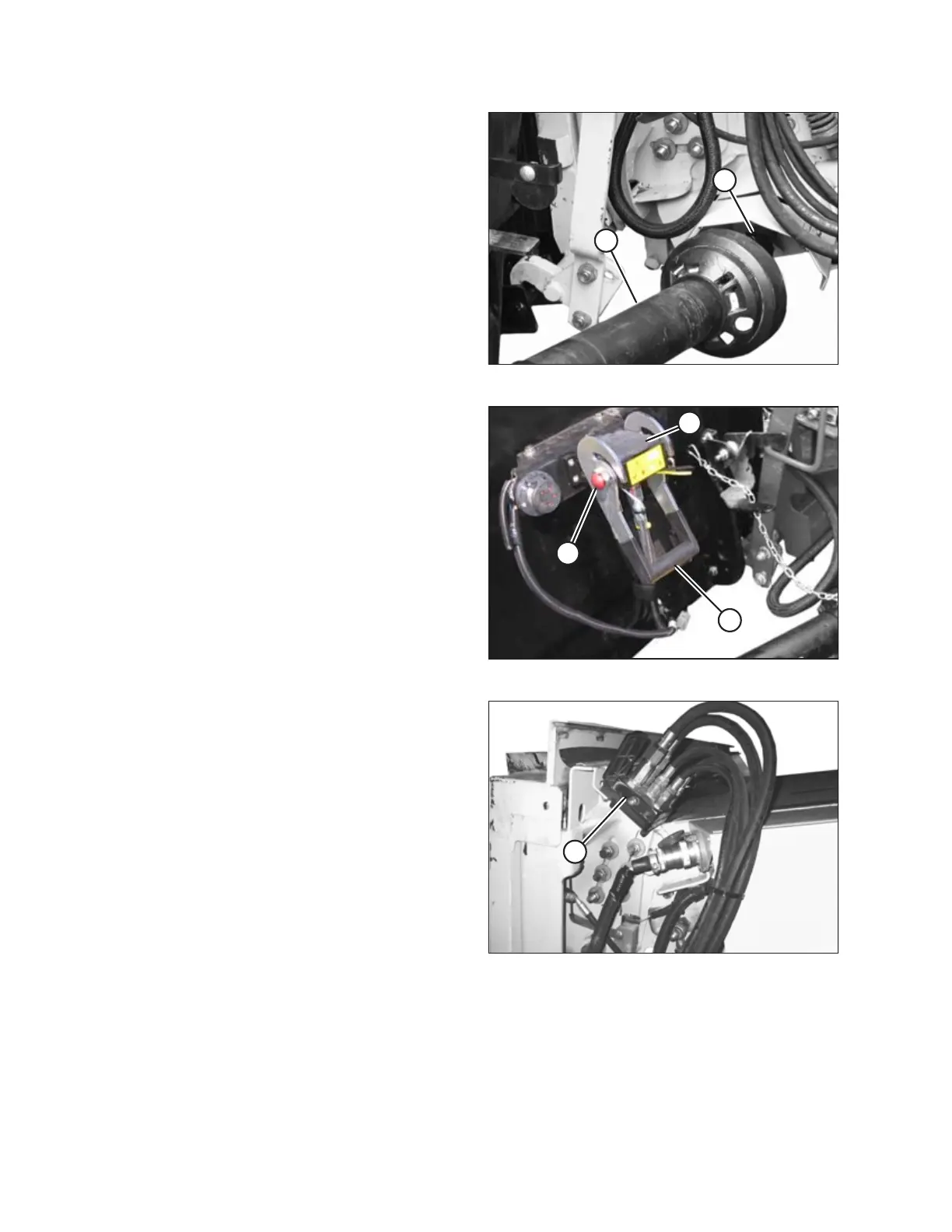

Figure 5.22: Attaching Driveline
9. Pull back collar (B) on end of driveline and push onto
combine output shaft (A) until collar locks.
1007664
A
B
C
Figure 5.23: Header Receptacle
10. Open cover (A).
11. Push in lock button (B) and pull handle (C) halfway up
to open position.
1021598
A
Figure 5.24: Combine Coupler/Connector
12. Remove coupler (A) from storage location on combine
and clean mating surface of coupler.
ATTACHING HEADER TO COMBINE
