MacDon PW8 - Page 71

214658 63 Revision A
1006780
A
B
C
D
C
E
F

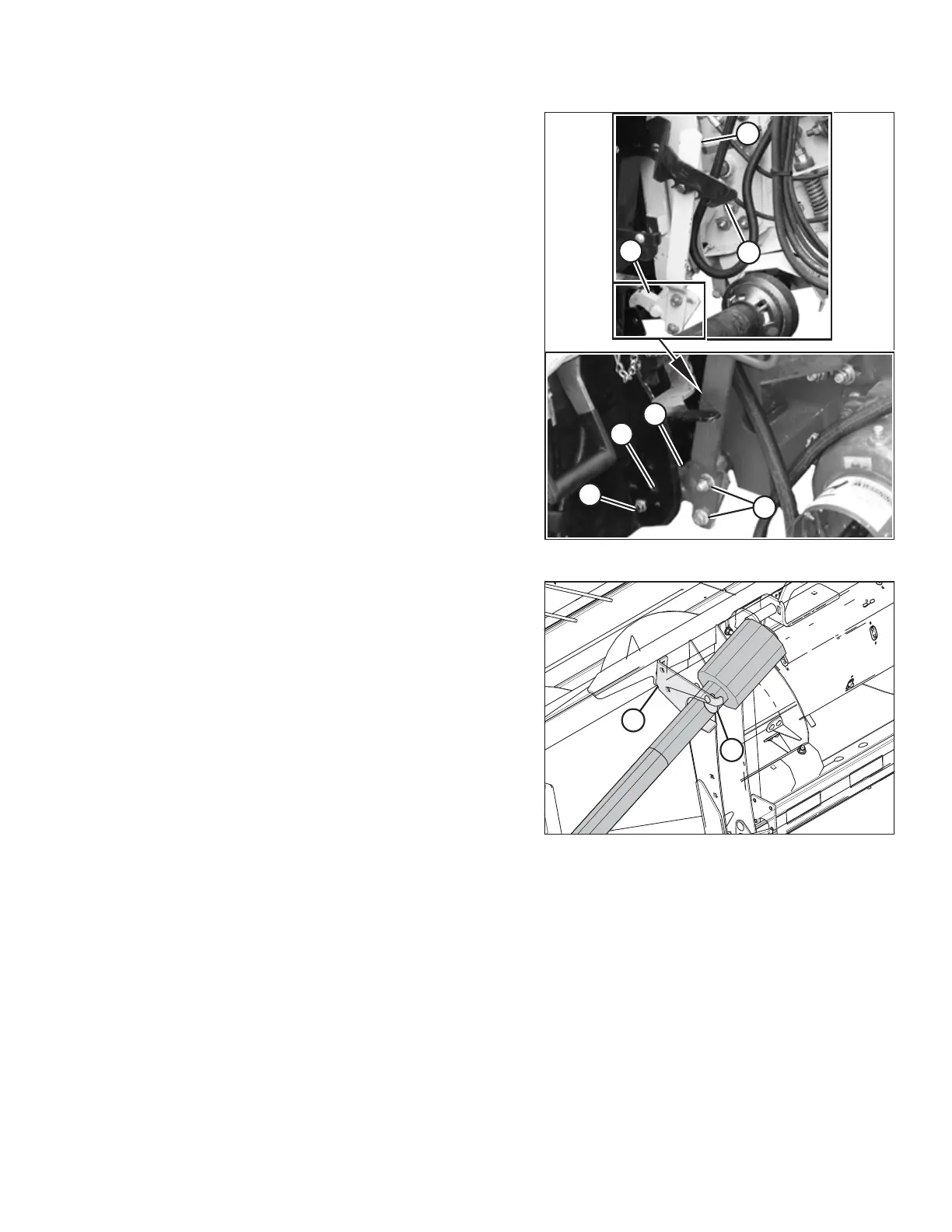

Figure 5.20: Engaging Locks
4. Lift lever (A) on header at left side of feeder house and
push handle (B) on combine so that hooks (C) engage
pins (D) on both sides of the feeder house.
5. Push down on lever (A) so that slot in lever engages
handle (B) to lock handle in place.
6. Loosen nut (E) and adjust position of pin (D) as
necessary (both sides) if locks (C) do not fully engage
pins (D) on header. Tighten nut.
7. Loosen bolts (F) and adjust lock as required to obtain
full lock on pin (D) when lift lever (A) and handle (B) are
engaged. Retighten bolts.
1006676
A
B
Figure 5.21: Driveline in Storage Position
8. Rotate disc (B) on header driveline storage hook (A)
and remove driveline from hook.
ATTACHING HEADER TO COMBINE
