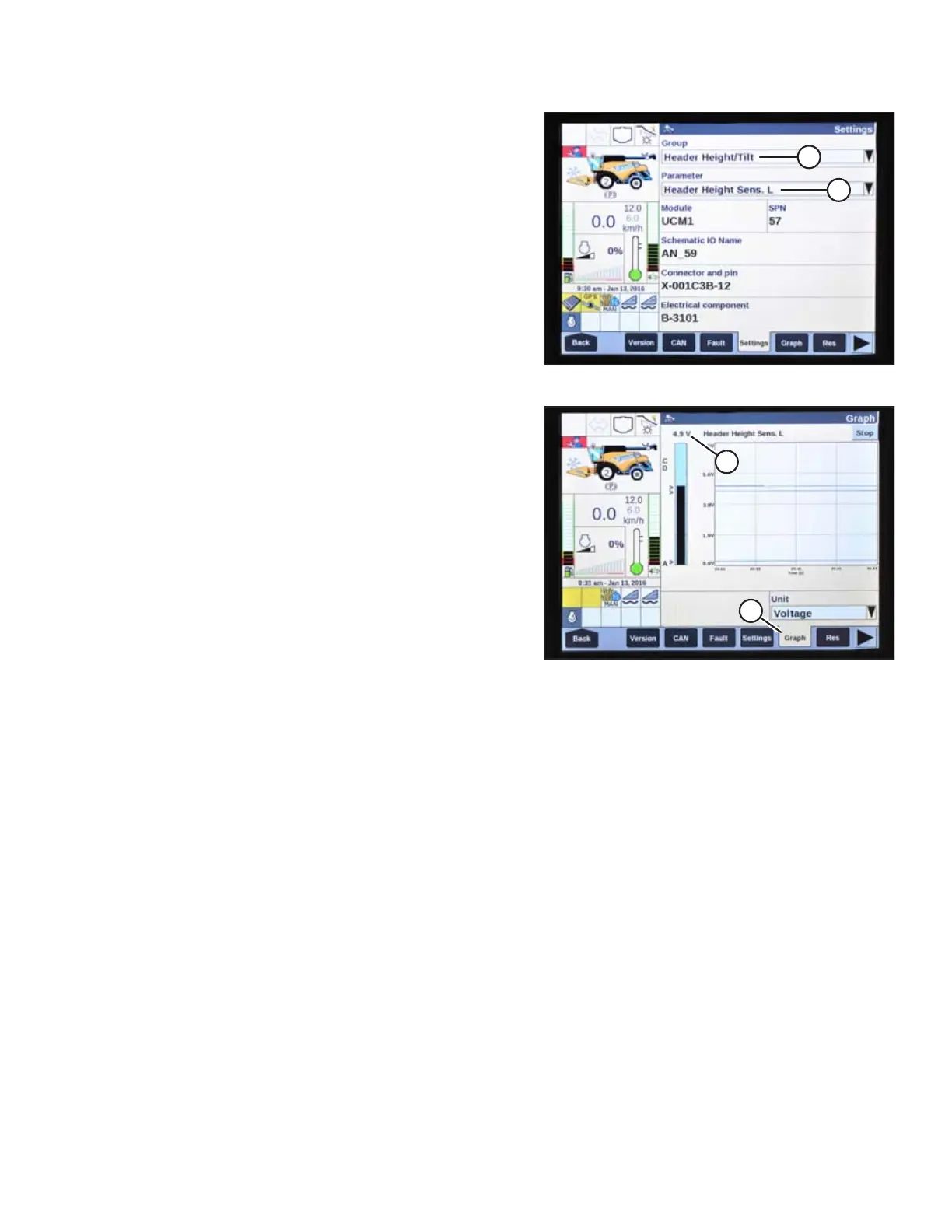

Figure 6.114: New Holland Combine Display
4. Select HEADER HEIGHT/TILT (A) from GROUP
drop-down menu.
5. Select HEADER HEIGHT SENS. L (B) from
PARAMETER drop-down menu.
1016055
A
B
Figure 6.115: New Holland Combine Display
6. Select GRAPH (A). The exact voltage (B) is displayed
at top of page.
7. Raise and lower header to see full range of voltage
readings.
8. If sensor voltage is not within low and high limits shown
in 6.1.2 Height Sensor Output Voltage Range –
Combine Requirements, page 74, or if range between
low and high limits is insufficient, you need to make
adjustments. For instructions, refer to Adjusting Header
Height Sensor Voltage Range (Left Side), page 77 and
Adjusting Header Height Sensor Voltage Range (Right
Side), page 77.
