214658 51 Revision A

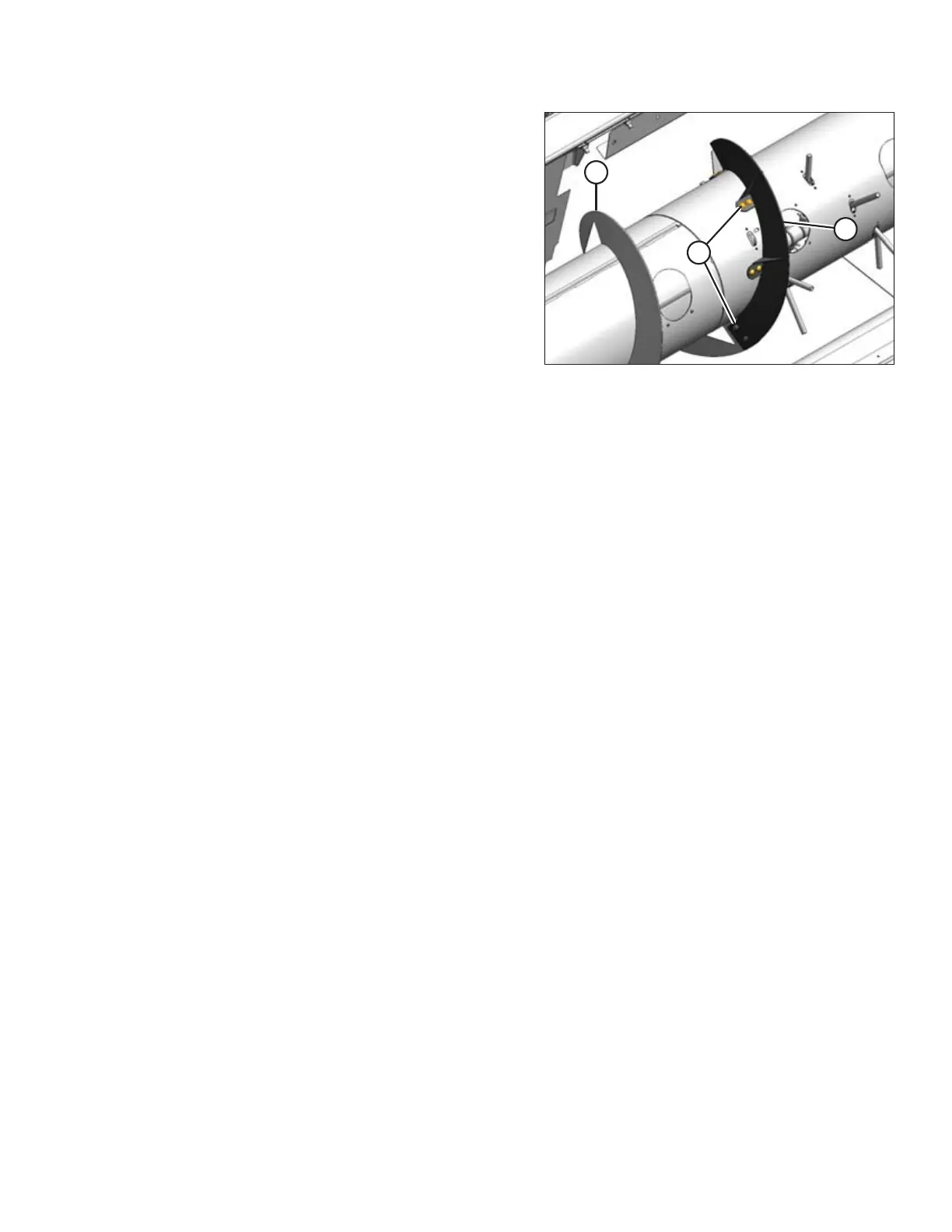

Figure 4.48: Long Flighting Extension
4. Retrieve the hardware provided in the manual
storage case.
5. Place new flighting extension (A) on auger, ensuring
new flighting rests on the outboard side of existing
flighting (B).
6. Secure flighting extension (A) to auger with existing
hardware and additional M8 x 20 bolts (C) and locknuts
provided in hardware bag. Bolts (C) that join the
flighting must be installed with heads facing inboard.
7. Adjust flighting extension position to achieve flushness
with existing flighting along outer edge.
8. Repeat the above steps for the opposite side.
9. Store removed components in a safe place.
10. Manually rotate the auger and check the clearances between the auger flighting and stripper plates. The
clearance should be 3–11 mm (1/8–7/16 in.). If necessary, adjust clearance. Refer to 4.5 Adjusting Stripper
Plate Clearance, page 54.
RECONFIGURING HEADERS
