214880 103 Revision A

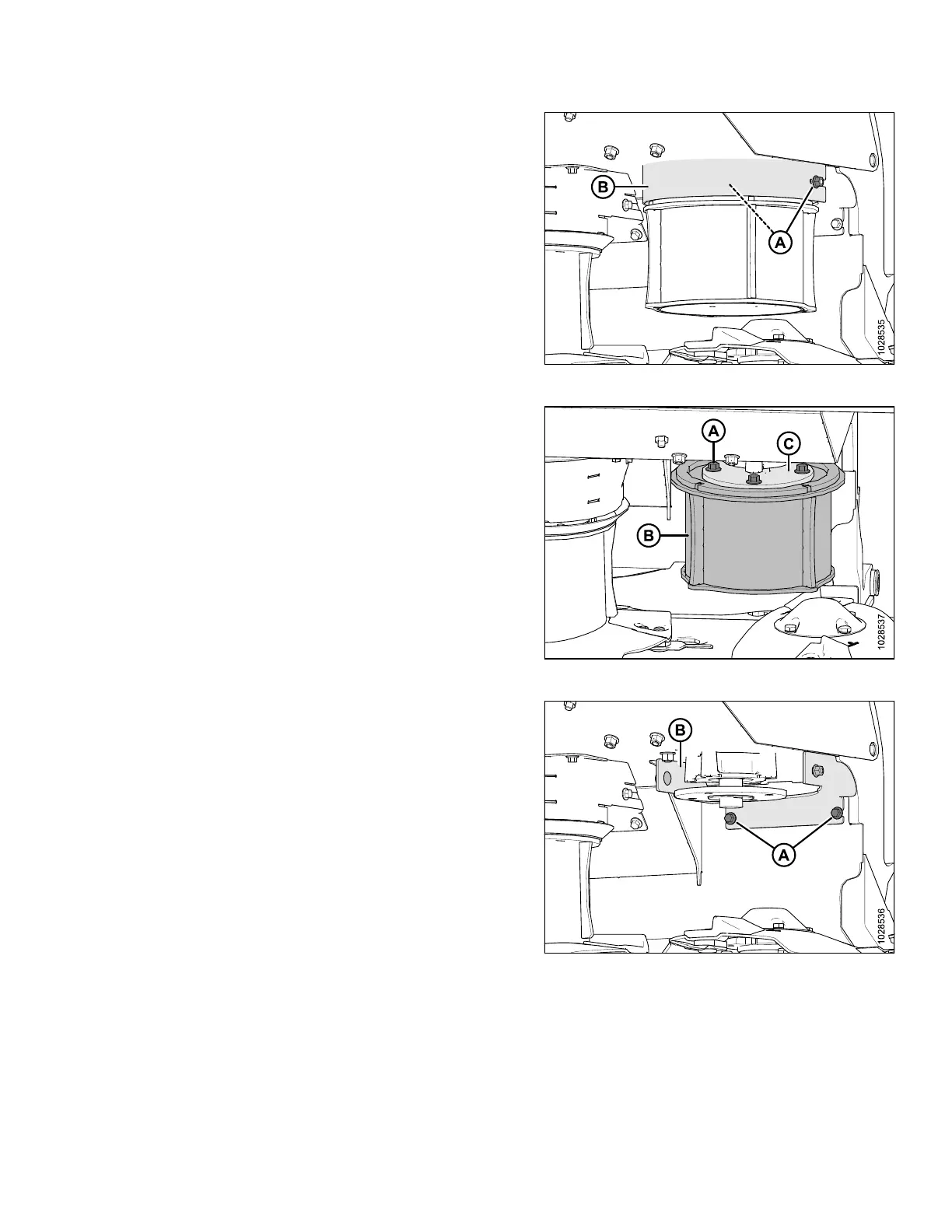

Figure 4.76: Driveshield
5. Loosen two M10 hex flange head bolts (A). Pull back
driveshield (B).
Figure 4.77: Suspended Drum
6. Remove four M12 hex flange head bolts (A) securing
suspended drum (B) to shaft (C), and remove suspended
drum (B).
Figure 4.78: Driveshield
7. Remove two M10 hex flange head bolts (A) and remove
driveshield (B).
8. Repeat Step 5, page 103 to Step 7, page 103 to remove the
opposite suspended drum.
MAINTENANCE AND SERVICING
