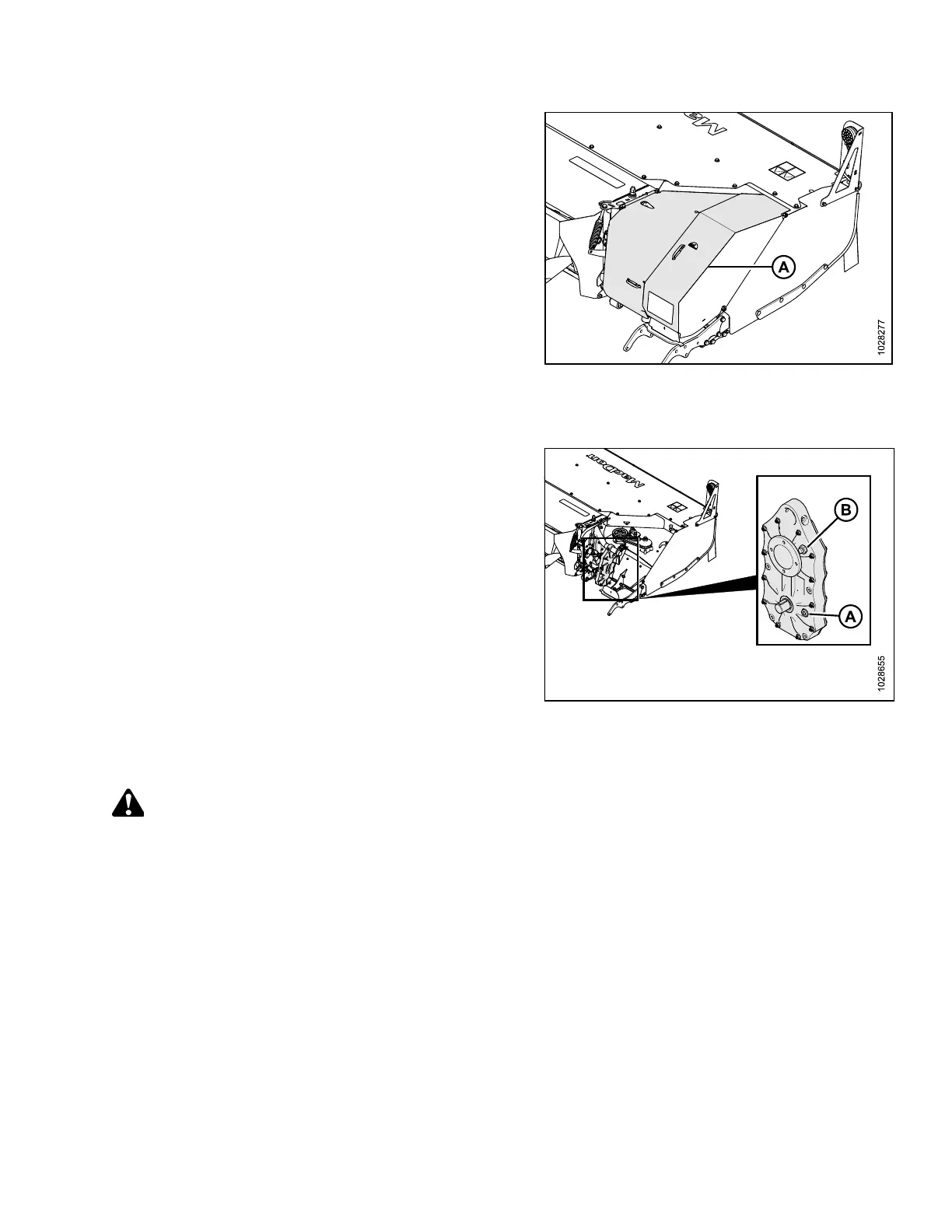

Figure 4.130: Right Driveshield
5. Remove the right driveshield (A). Refer to 4.10.1 Removing
Driveshields, page 146.
Checking conditioner roll timing gearbox oil level:
Figure 4.131: Roll Timing Gearbox
6. Clean around oil level sight glass (A) and breather (B) on the
inboard side of the gearbox.
7. Ensure that the lubricant is level with the top of the sight
glass. If necessary, add lubricant through breather (B). Refer
to this manual’s inside back cover for a list of
recommended fluids, lubricants, and capacities.
Changing conditioner roll timing gearbox oil:
WARNING
To avoid bodily injury or death from unexpected start-up or fall of raised machine: stop engine, remove key, and
engage lift cylinder lock-out valves before going under machine.
