214880 126 Revision A

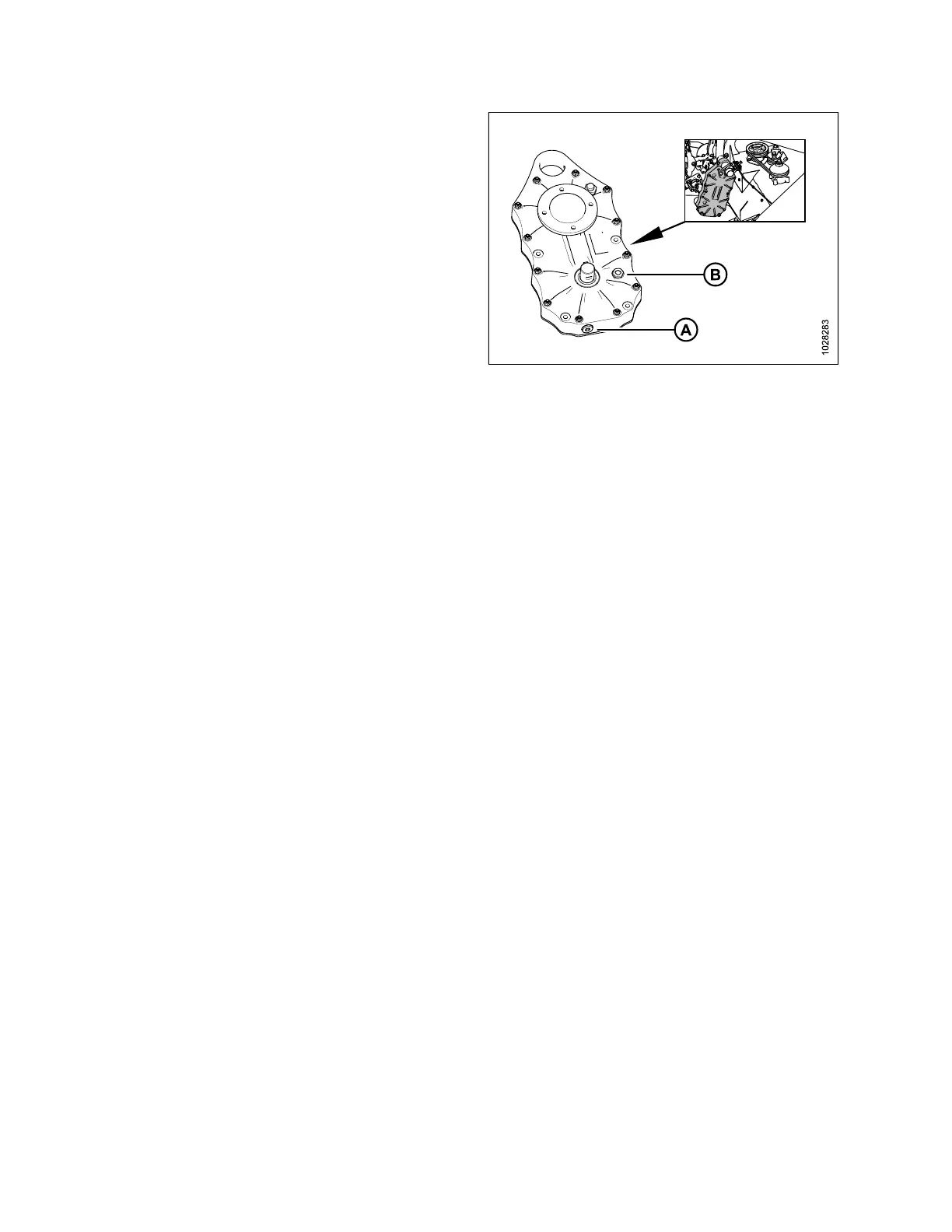

Figure 4.132: Roll Timing Gearbox
8. Raise the header to provide sufficient access to oil drain
plug (A).
9. Shut down the engine, and remove the key from the
ignition.
10. Engage the windrower lift cylinder safety props. Refer to
3.3.1 Engaging and Disengaging Header Safety Props –
M1240 Windrower, page 22 .
11. Clean around oil drain plug (A) on the bottom of the
gearbox and around oil level plug (B) on the inboard side of
the gearbox.
12. Place a 1 liter (1.05 qts [US]) container underneath the
conditioner gearbox.
13. Remove oil drain plug (A) using a hex key.
14. Allow sufficient time for the oil to drain, reinstall oil drain
plug (A), and tighten.
15. Fill with the specified volume of oil as listed on the inside
back cover of this manual or until level is visible in the sight
glass (B).
16. Reinstall driveshields. Refer to 4.10.2 Installing Driveshields,
page 147 .
17. Lower the header.
18. Properly dispose of oil.
MAINTENANCE AND SERVICING
