214880 139 Revision A

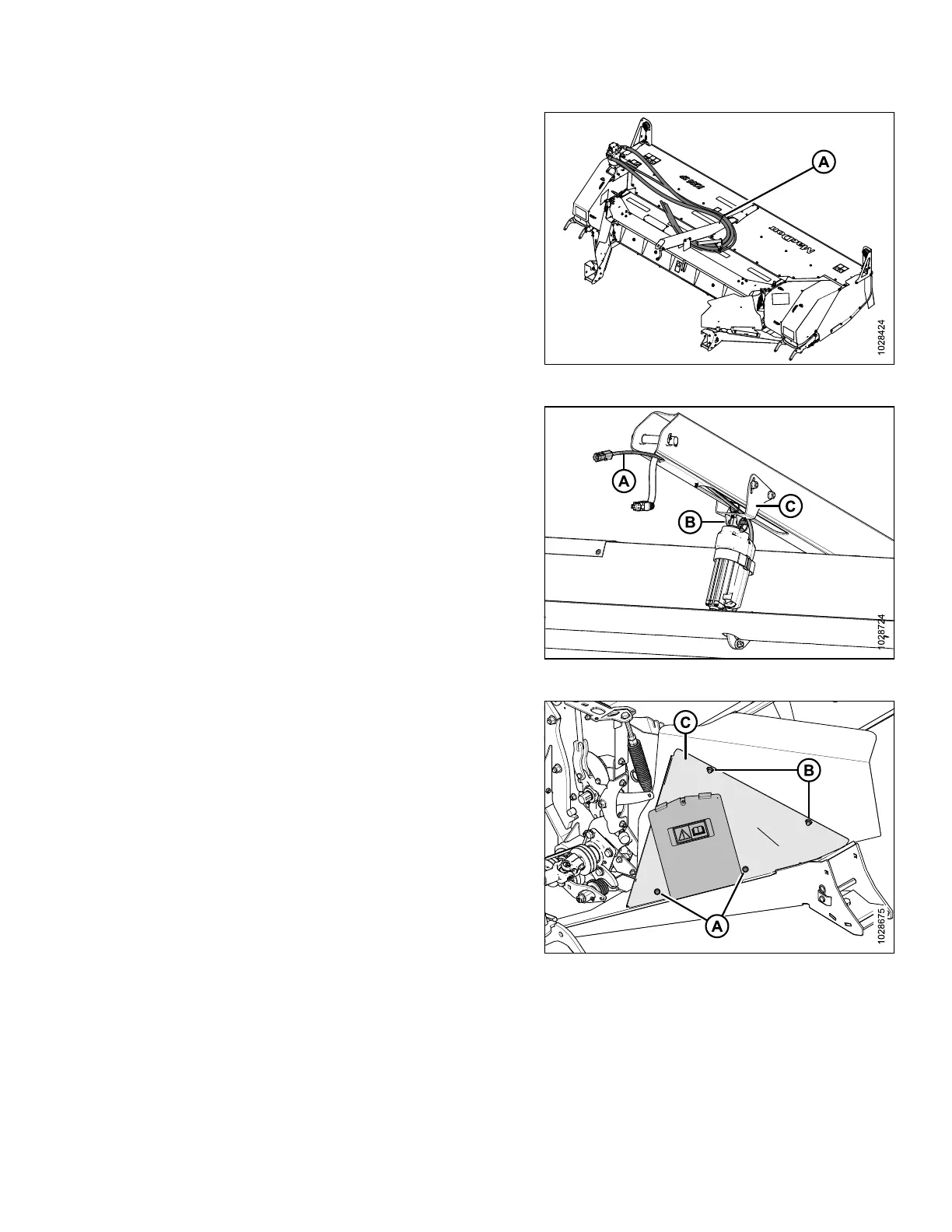

Figure 4.157: M1 Series Hose Bundle
2. Move hose bundle (A) clear of the frame and lay it on
the header.
Figure 4.158: Linear Actuator
3. If remote baffle kit is installed, disconnect linear actuator
harness (A) from main harness and remove clevis pin (B)
and lynch pin from clevis support (C), otherwise proceed to
Step 4, page 139.
Figure 4.159: Fixed Deflector Support – Left Side
of Header
4. Remove two M10 hex flange bolts (A) and two M10 short
square neck carriage head bolts (B) securing the fixed
deflector support (C) to the header support deflector, and
remove the support.
NOTE:
Left fixed deflector support is shown, right is similar.
MAINTENANCE AND SERVICING
