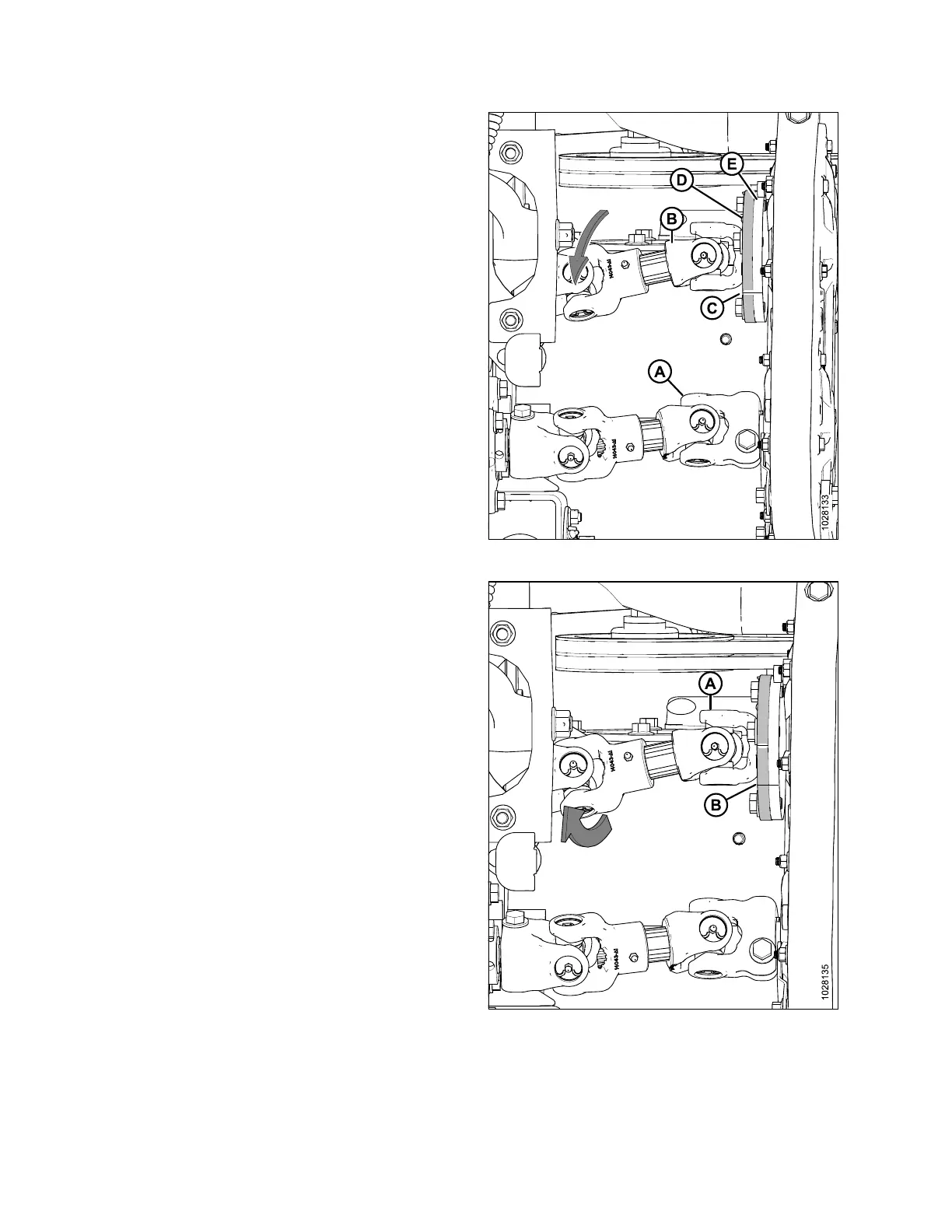

Figure 3.64: Conditioner Drive
3. Secure bottom roll (A).
4. Manually rotate upper roll (B) counterclockwise direction
until it stops rotating.
5. Make a mark (C) across yoke (D) and gearbox flange (E).
Figure 3.65: Conditioner Drive
6. Manually rotate upper roll (A) clockwise it stops rotating.
Make a second mark (B) on the yoke flange, and align it
with the mark on the gearbox flange.
