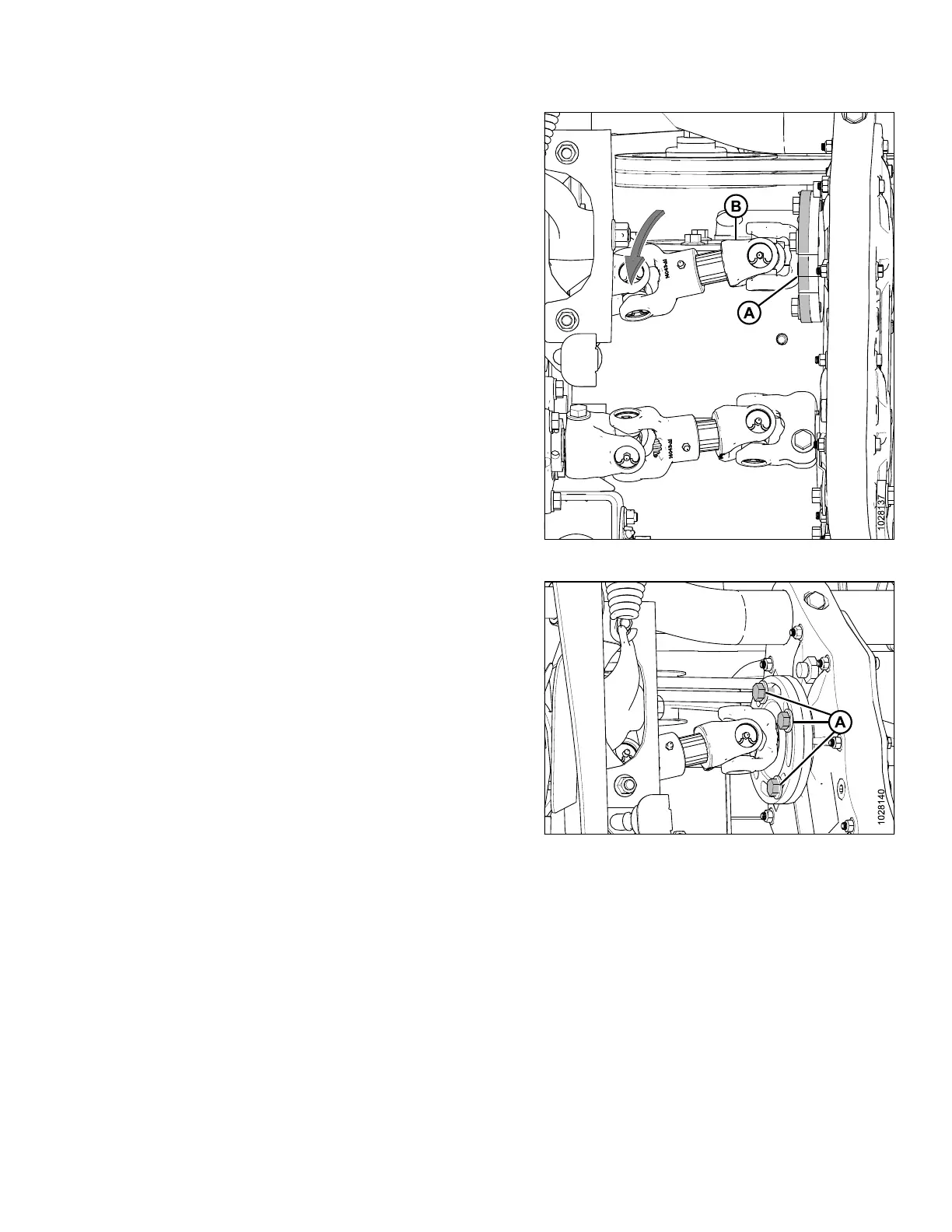

Figure 3.66: Conditioner Drive
7. Determine center point (A) between the two marks on the
yoke plate, and place a third mark.
8. Rotate upper roll (B) counterclockwise, until the bolt lines
up with the third (center) mark.
Figure 3.67: Conditioner Drive
9. Ensure the threads on four bolts (A) are clean and free of
lubricant.
NOTE:
Only three of the four bolts are shown in the illustration.
10. Apply medium-strength threadlocker (Loctite
®
242 or
equivalent) and tighten bolts (A). Torque to 95 Nm
(70 lbf·ft).
