3. MACHINE OVERVIEW
3.1 SPECIFIED OPERATIONS
This machine is to be used for the following operations:
• Crane operation
• Travelling suspension operation
This machine is a mobile crane consisting of the upper swiveling body equipped with a boom
type crane and the lower crawler type carrier.
This self-propelled crane is capable of moving (travelling) in the worksite and lifting an object
weighing up to the rated total load.
3.2 MACHINE STRUCTURE
(1) Carrier
(2) Upper slewing body
(3) Safety device
In this manual, the front, rear, left and right directions are
defined with the basic reference direction that the operator sits
on the operator's seat with the carrier's sprocket (A) at the rear
and viewing the machine's traveling direction (forward). For the
slewing of boom (upper slewing body), the boom slewing
directions (clockwise for right and counterclockwise for left)
are determined as viewed from above the machine.

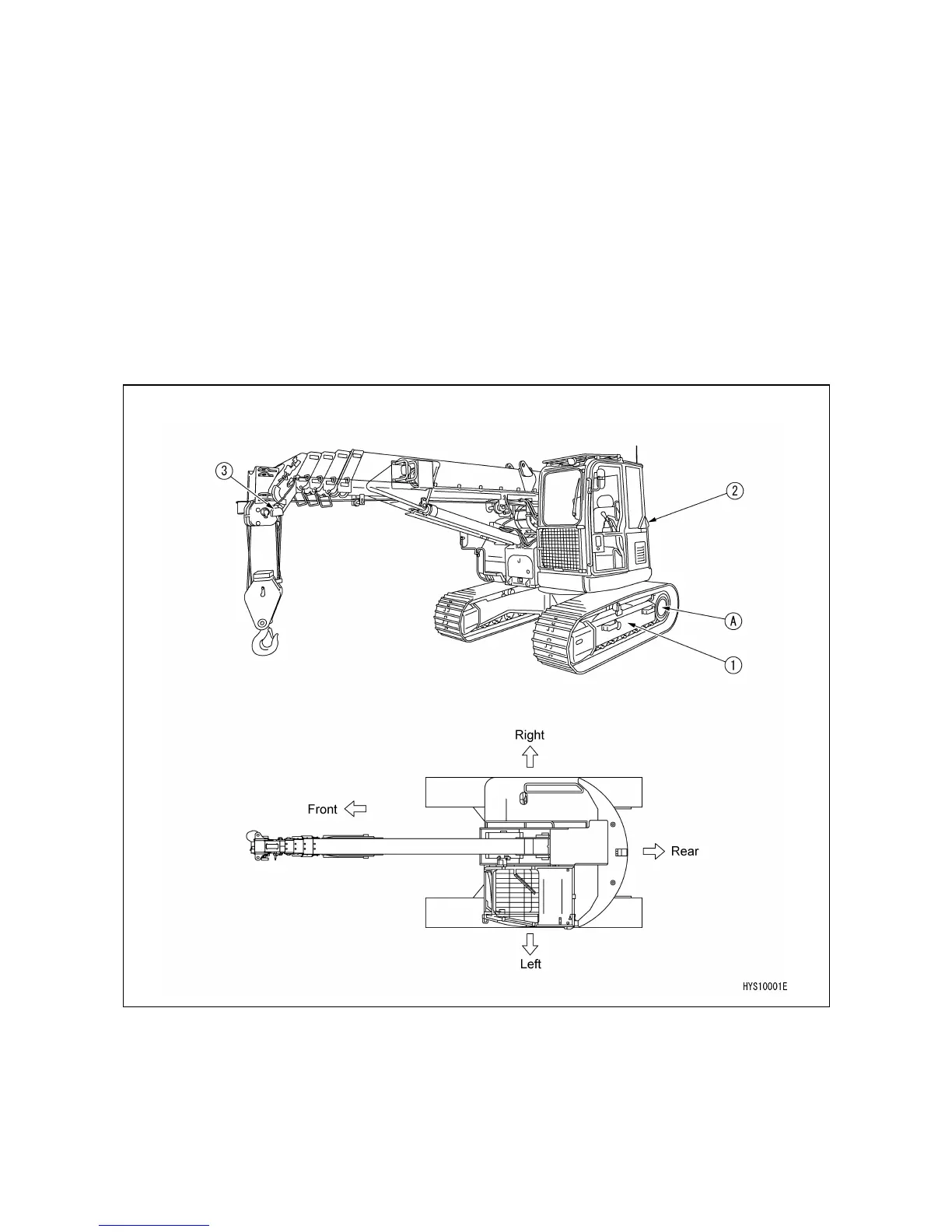

EXTERNAL VIEW
