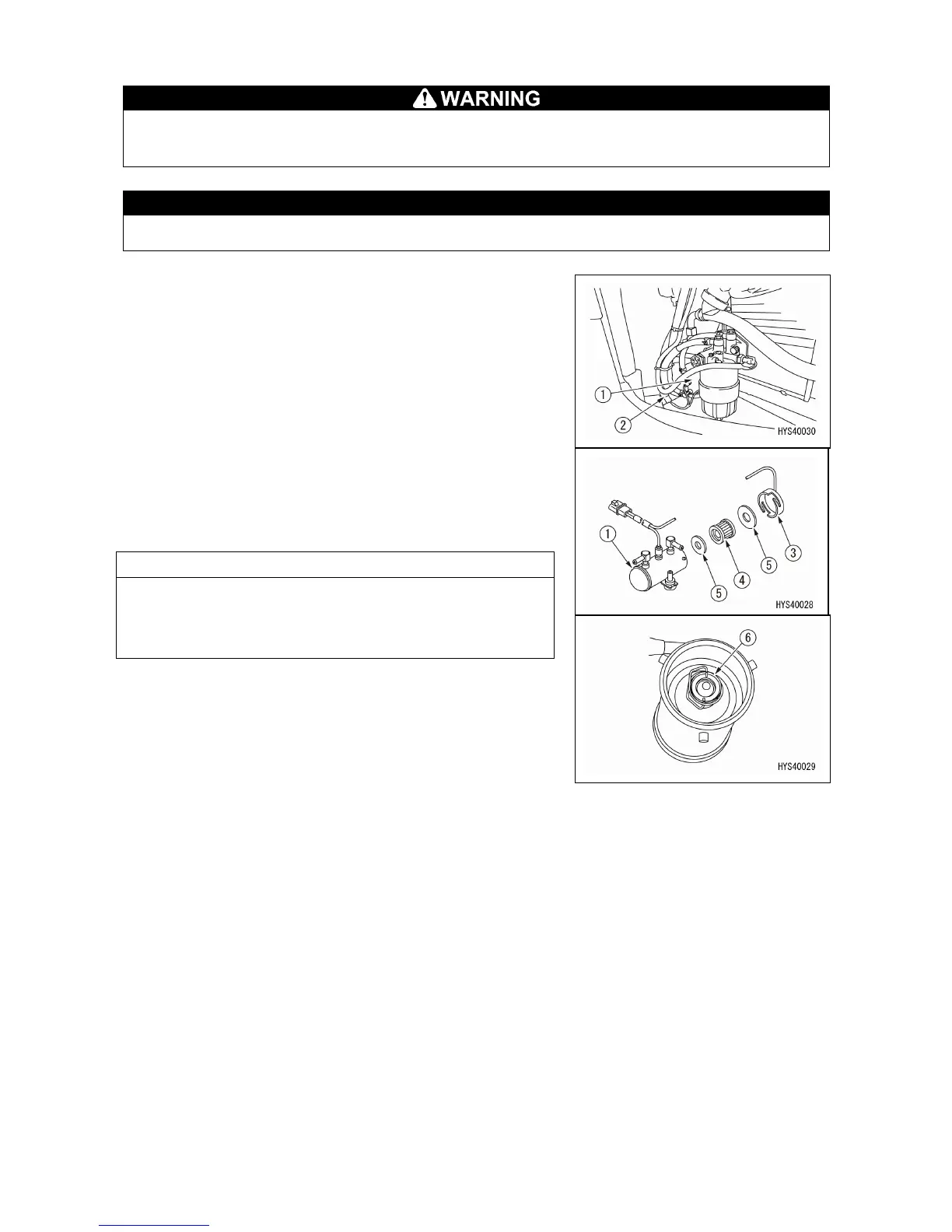

[10] REPLACING THE FUEL FEED PUMP FILTER
• Since the pump has residual fuel, receive the fuel in a pan before removing it, while
paying attention not to allow the fuel to splash on the engine. Also, be cautious of any
fire.
CAUTION
• After removing the filter, be sure to replace the gasket and clean the magnet inside the
cover.
1. Open the right cover.
2. Disengage the harness connector (2) of fuel feed
pump (1).
3. Use a spanner to turn the cover (3) and take it off.
4. Remove the filter (4) and gasket (5), and replace
them.
· For the paper type, replace with new filter (4) and
gasket (5).
· For the steel mesh type, wash the removed filter (4)
with clean diesel fuel and blow dust off with
high-pressure air. Then, mount the filter (4) and new
gasket (5).
5. Attach the cover (5). Use a spanner to securely tighten
it.
NOTES
·
In the middle area inside the magnetic pump, do not
disassemble the part (6) pertaining to the piston.
· When removing the gasket, pinch the perimeter
of the
gasket in such a way that it is being stretched.
