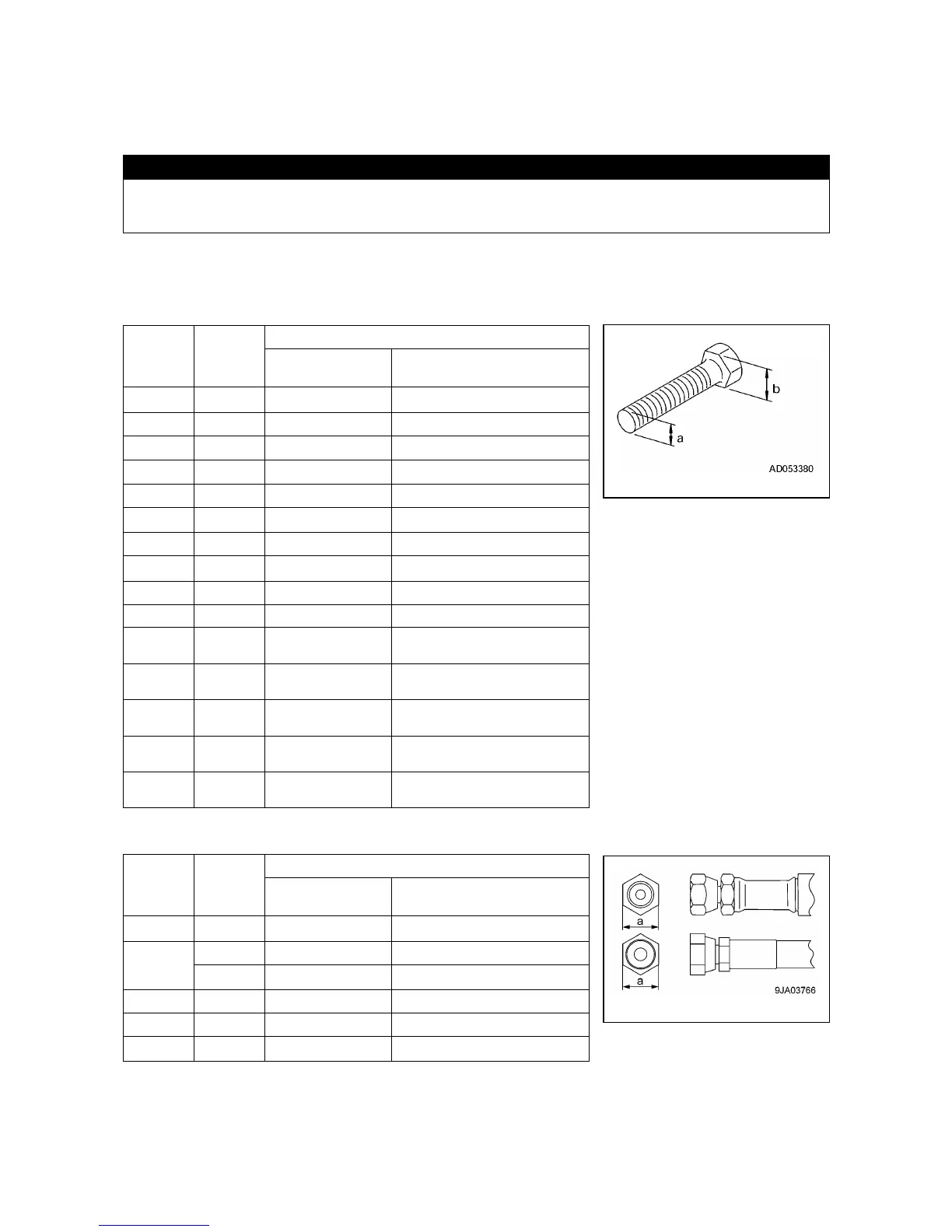

8. STANDARD TIGHTENING TORQUE
8.1 STANDARD TIGHTENING TORQUE LIST
CAUTION
Tightening at a torque beyond the specified range will cause damage to tightened parts
or loosening, resulting in failure and malfunction of the Machine.
Pay adequate
attention to the tightening operation.
Torque the metric bolts and nuts that have no specific indication, to the values shown in this
table.
Adequate tightening torque is determined with respect to a width across flat (b) of a bolt or nut.
Nominal
size
a (mm)
Width
across
flat
b (mm)
Tightening torque {N·m (kgf·m)}
Target value Tolerance
6 10 13.2 (1.35) 11.8 to 14.7 (1.2 to 1.5)
8
13
31.0 (3.20)
27.0
to
34.0 (2.8 to 3.5)
10 17 66.0 (6.70) 59.0 to 74.0 (6.0 to 7.5)
12 19 113 (11.5) 98.0 to 123 (10.0 to 12.5)
14
22
172 (17.5)
153
to
190 (15.5 to 19.5)
16 24 260 (26.5) 235 to 285 (23.5 to 29.5)
18
27
360 (37.0)
320
to
400 (33.0 to 41.0)
20 30 510 (52.3) 455 to 565 (46.5 to 58.0)
22
32
688 (70.3)
610 to 765 (62.5 to 78.0)
24
36
883 (90.0)
785
to
980 (80.0 to 100)
27 41 1295 (132.5)
1150 to 1440
(118 to 147)
30 46 1720 (175.0)
1520 to 1910
(155 to 195)
33 50 2210 (225.0)
1960 to 2450
(200 to 250)
36 55 2750 (280.0)
2450 to 3040
(250 to 310)
39 60 3280 (335.0)
2890 to 3630
(295 to 370)
Tighten hoses with the respective values of torque specified in the table below:
Nominal
size
No.
Width
across
flat
a (mm)
Tightening torque {N·m (kgf·m)}
Target value Tolerance
02 19 44 (4.5) 35 to 4 (3.5 to 5.5)
03
22 74 (7.5) 54
to 93 (5.5 to 9.5)
24
78 (8.0)
59
to
98 (6.0 to 10.0)
04 27 103 (10.5) 84 to 132 (8.5 to 13.5)
05 32 157 (16.0) 128 to 186 (13.0 to 19.0)
06 36 216 (22.0) 177 to 245 (18.0 to 25.0)
