4.2 CHANGING OF FLY-JIB TILT ANGLE
Changing of the Fly-jib tilt angle should be always practiced without any hoisted load and only
with the No.1 Fly-jib. Avoid changing the Fly-jib tilt angle with a hoisted load and/or using No.2
Fly-jib, otherwise excess load is applied to the lever block which may damage it.
CAUTION
• This Fly-jib is adjustable to four tilt angles (0, 20, 40 and 60 degrees
). Select the suitable
position for the intended work.
To change the tilt angle of the Fly-jib, follow the instructions below:

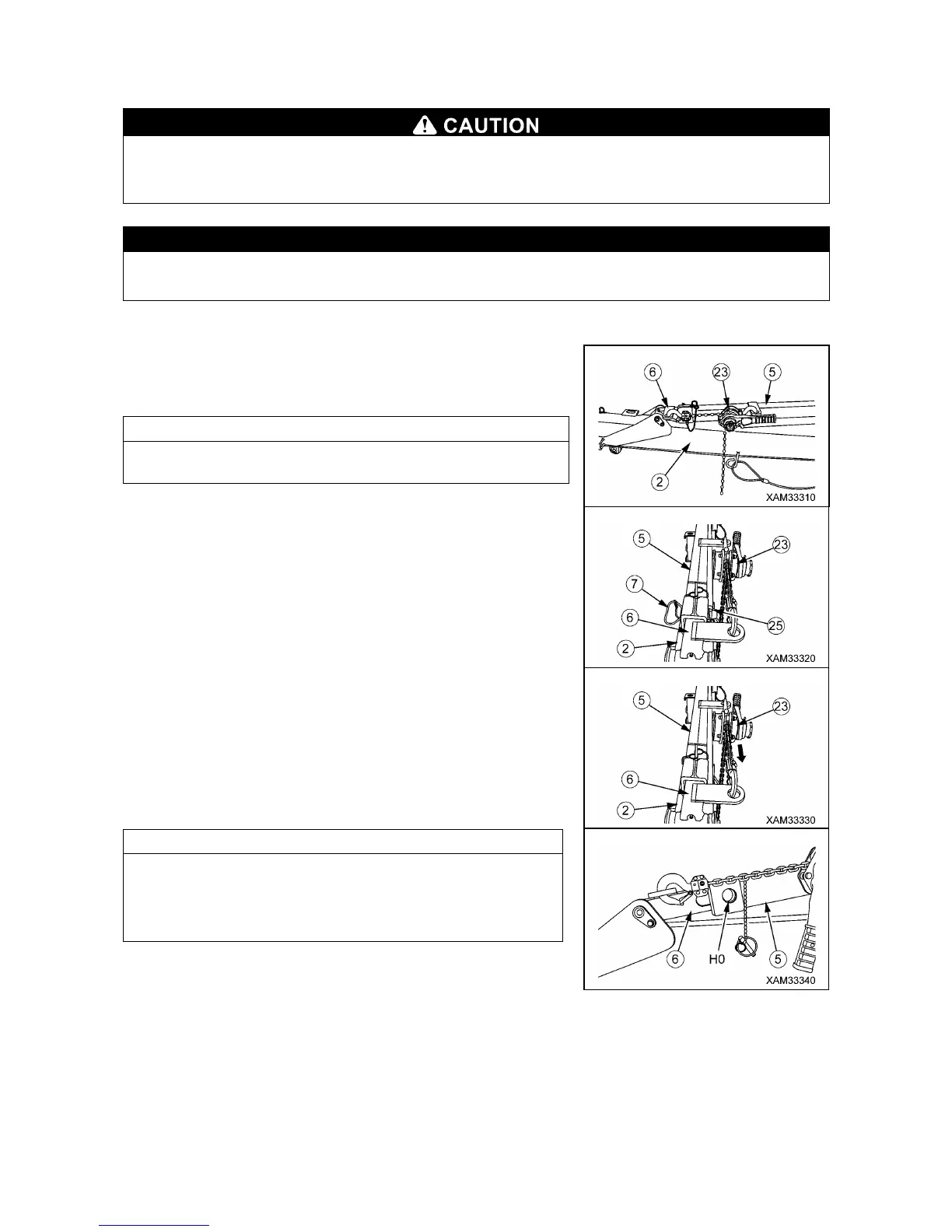

1. Set the attached lever block (23) between the tilt angle
adjuster outer rod (5) and inner rod (6) and take up the slack.
NOTES
Lever block (23) handling will be easier, when you set the lever
side to the outer rod side (5).
2. Detach the linchpin (25) from the position pin (7), then use the
lever block (23) and extract the position pin (7).
3. Wind up the lever block (23) to provide some slack between
outer rod (5) and inner rod (6), and then lower the No.1 Fly-jib
(2).
NOTES
When the No.1 Fly-
jib (2) lowers, the inner rod (6) lowers
together. Use the lever block (23) further to match the hole (H0)
of the inner rod (6) for 0 degree angled Fly-jib and the hole of
the outer rod (5).
