Maeda CC1485S-1 - Rated Total Load Chart

9

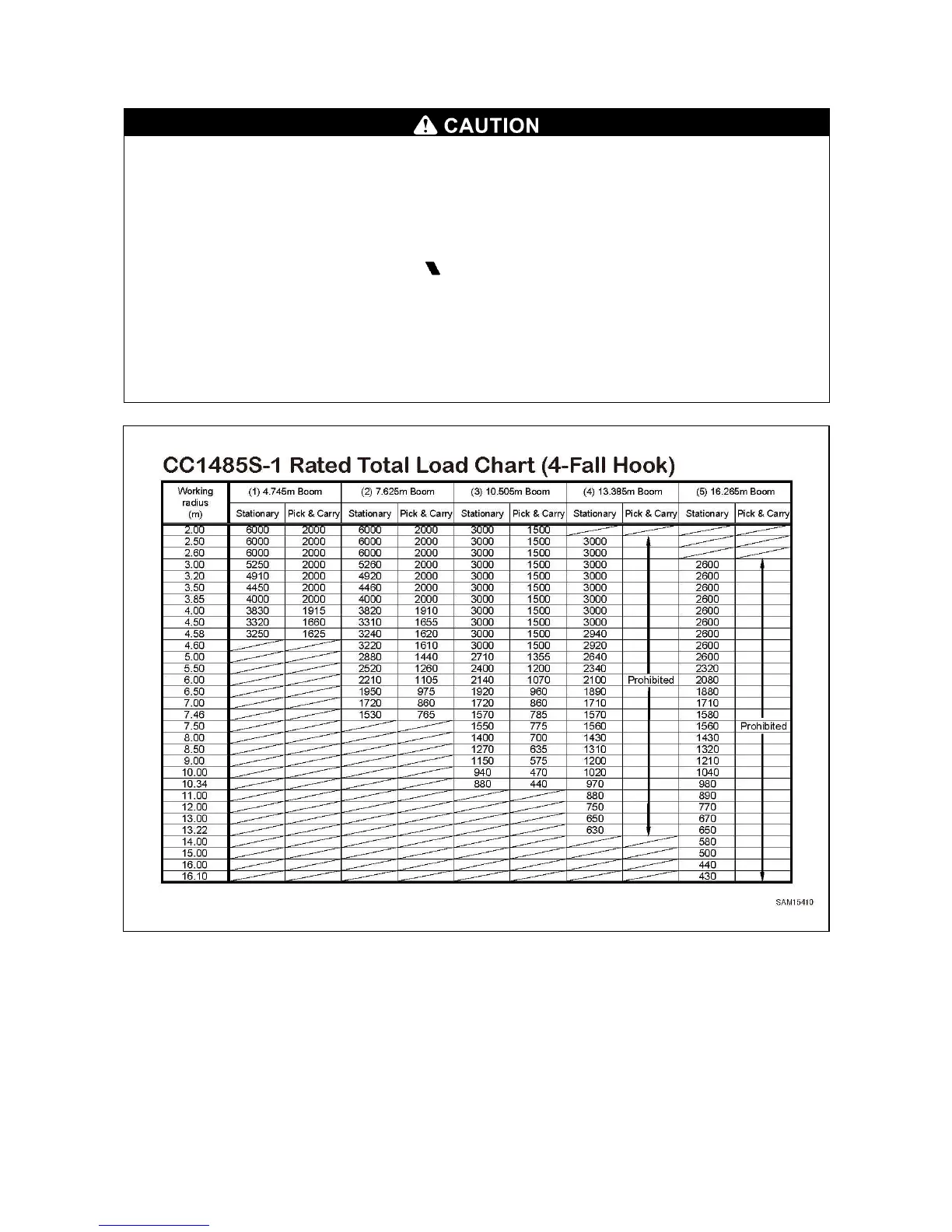

5.3 RATED TOTAL LOAD CHART
• Rated total load chart is based on level, hard ground.
• Values given in the rated total load chart are based on the working radius including
the deflection of boom under actual load.
•
When boom (3) is extended even for a minimal extent, perform the work within the
capacity indicated in the column of "boom (3)".
• When boom (4) is
extended even for a minimal extent, perform the work within the
capacity indicated in the column of "boom (4)".
• When more than one-half of the "
mark" of boom (4) is exposed from boom (3),
perform the work within the capacity indicated in the column of "boom (5)".
•
If working radius exceeds the value of Working Radius column in the chart by any
extent, work should be performed within the rated total load in the next column of
Working Radius.
• The value of a rated total load including the mass of hoisting accessories (hook: 90
kg (applicable for 2-fall and 4-fall wire rope) or 20 kg (dedicated for Single-fall hook
wire).
