4.2 WINCH WIRE ROPE REEVING SYSTEM AND GROSS RATED LOAD
Use a wire rope so that the load per wire rope is "1500 kg" or more.

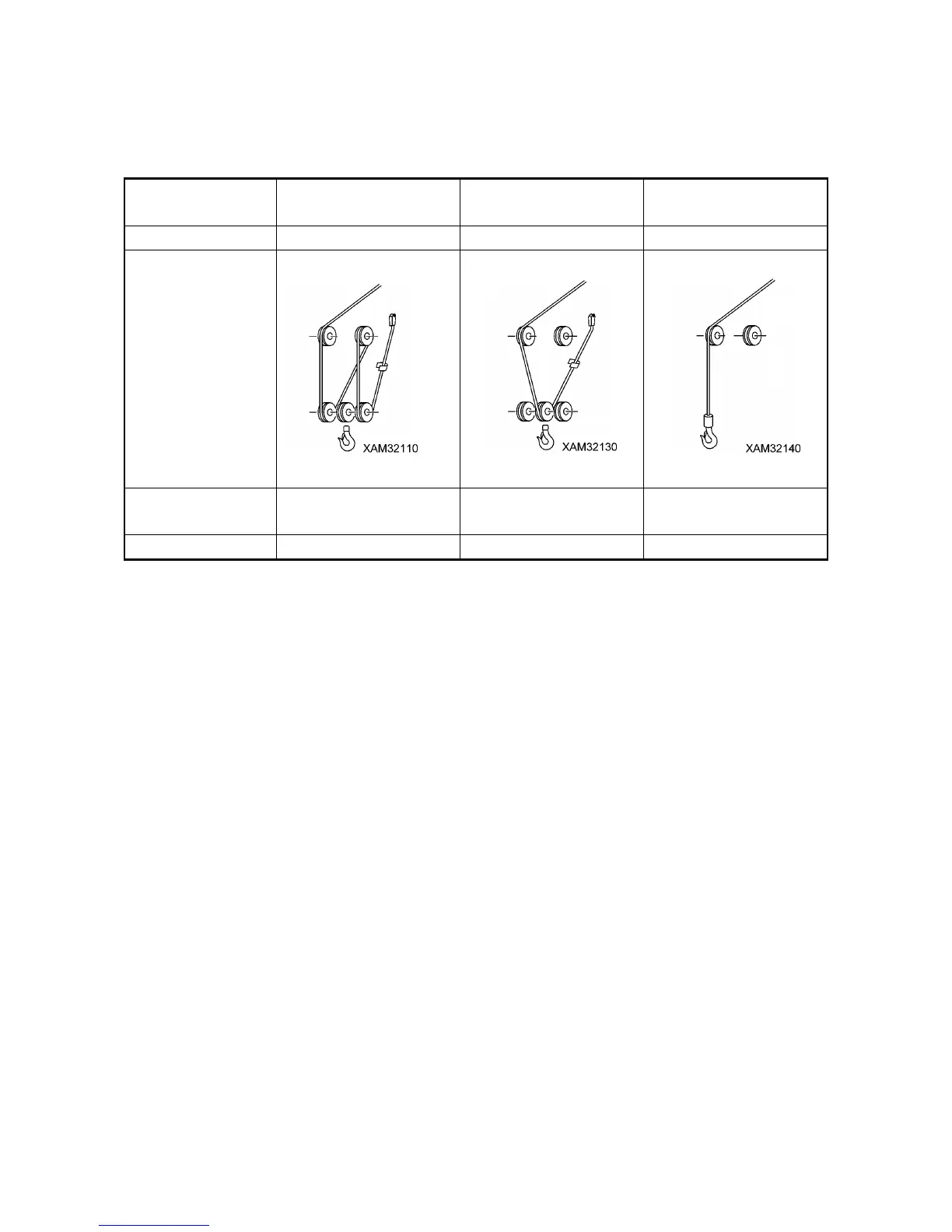

The table below shows the type of a hook block, number of falls of a wire rope and the maximum
gross rated load at that time.
Hook type
Hook used for both
2 falls and 4 falls
Hook used for both
2 falls and 4 falls
Hook exclusive for
single fall
Number of falls 4 fall 2 fall Single fall
Reeving system
Maximum gross
rated load
6000 kg 3000 kg 1500 kg
Mass of hook
90 kg
90 kg
20 kg
