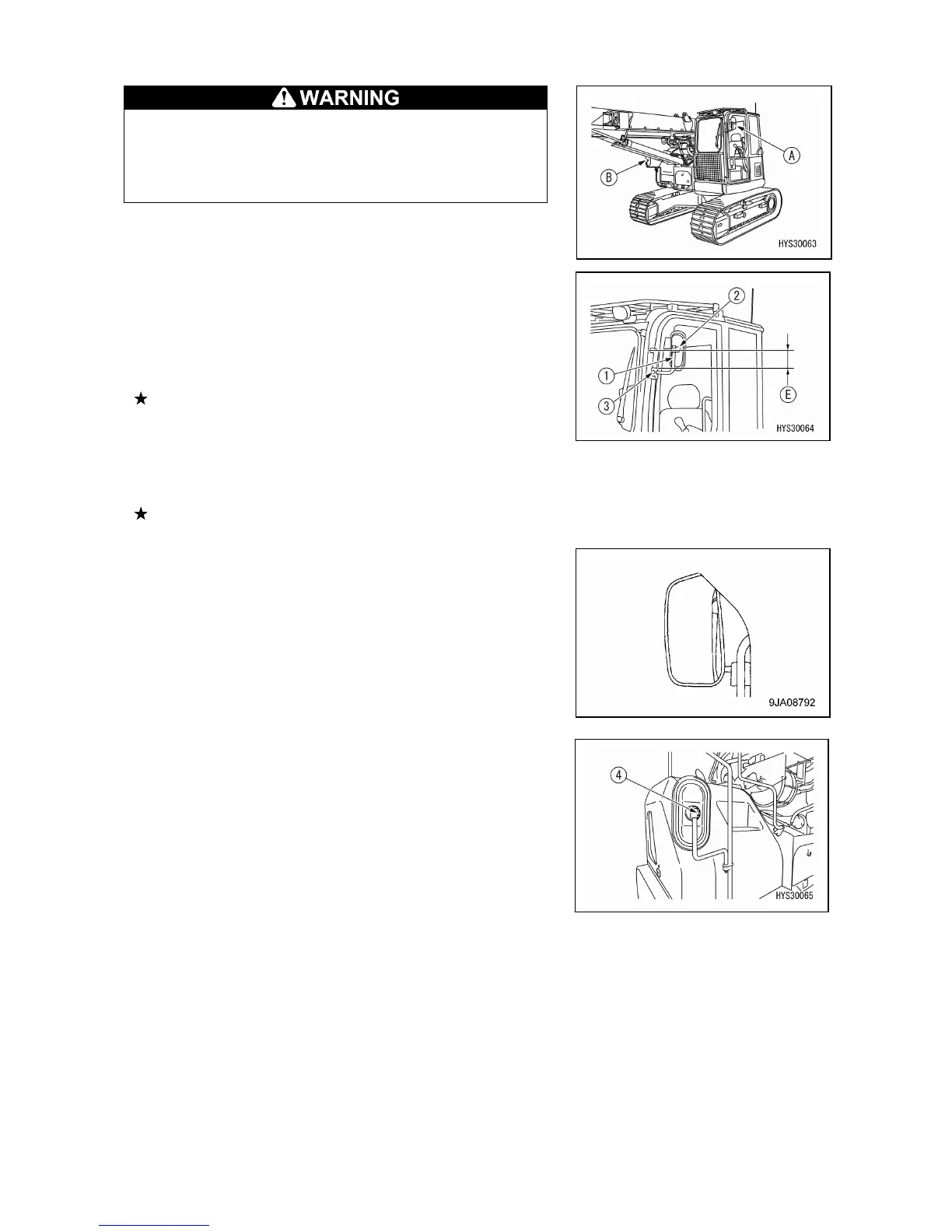

[12] ADJUSTMENT OF MIRRORS
Be sure to adjust the mirrors before operation. If the
mirrors are poorly adjusted, the visibility can not be
secured, resulting in disorder or serious physical
injury.
[MIRROR (A)]
Adjust the mirror mounting so that a person at the rear left of
the machine is in view.
• Install the mirror at the position shown in the illustration on
the right.
Dimension (E): 100 mm
• Fix the mirror stay (1) with the mirror position extended to
the maximum.
• If the mirror movement is stiff during adjustment, loosen the
mirror bolt (2) and mirror mounting bolt (3) to adjust.
Tightening torque of bolt (2): 15.7 - 19.6 Nm (1.6 - 2.0 kgfm)
• Adjust so that the side of the machine body is reflected in the
mirror as shown in the illustration on the right.
[MIRROR (B)]
Adjust the mirror mounting so that a person at the right side of
the machine is in view.
• Install the mirror at the position shown in the illustration on
the right.
• If the mirror movement is stiff during adjustment, loosen the
mirror nut (4) to adjust.
