5.2 HOISTING MACHINE
5.2.1 HOISTING MACHINE WITH BOOM LOWERED
• See "SPECIFICATION 1. MAIN SPECIFICATION TABLE" for the dimensions and mass of
this machine.
• A person who uses the crane to perform hoisting operation must have the crane operation
qualifications.
• Do not perform hoisting operation with a worker placed on the machine.
• Only use a sling (e.g. wire rope and shackles) which is approved and capable of lifting the
mass of the machine.
• Put the machine into a level state when lifting.
•
When performing lifting work, place the lock lever at the lock position to prevent the
machine from moving unexpectedly.
• Never get under or around the lifted machine.
• Be sure to lift the machine only in the following procedure and at the sling installation
position (pass the wire rope for slinging through between the 1st and 2nd of the track
crawler from the front of the machine and between the 1st and 2nd from the rear). If the
machine necessarily needs to be lifted in other manner, consult us or our sales service
agency.
CAUTION
• When lifting the machine, use the exclusive sling and two wire ropes of the same standard.
When lifting the machine, be careful not to allow the wire ropes for slinging to contact the main
body of the machine.
• Wire rope: Breaking load 24.5 tons
• Shackle: Working load 14.0 tons
• When lifting the machine with the boom lowered, be sure to store the hook block in the simple
stowage position (boom tip). See "OPERATION 3.7 MACHINE TRAVELLING POSTURE" for
details.

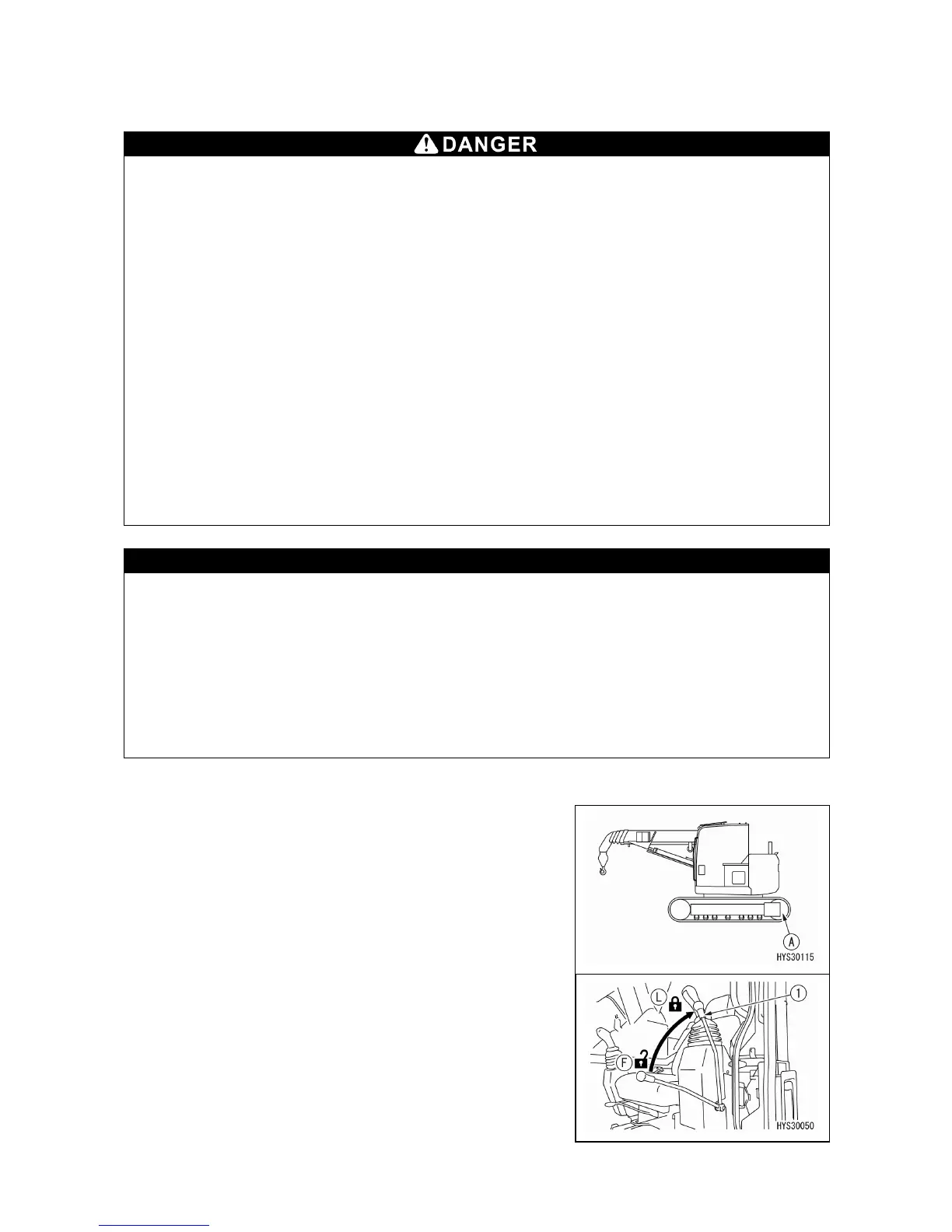

When lifting the machine, perform the following on a firm, level ground.
1. Set the Machine to the "Travelling posture" in the right figure.
2. Place the lock lever (1) securely in the lock position (L).
3. Stop the engine and remove the starter switch key. Check
that there is nothing around the driver seat and get off the
machine.
4. Close all the doors, windows and covers.
Lock the door, covers and caps with lock.
