[2] CHECKING/REFILLING SWING PINION GREASE AMOUNT
• Have a scale (rule) available.

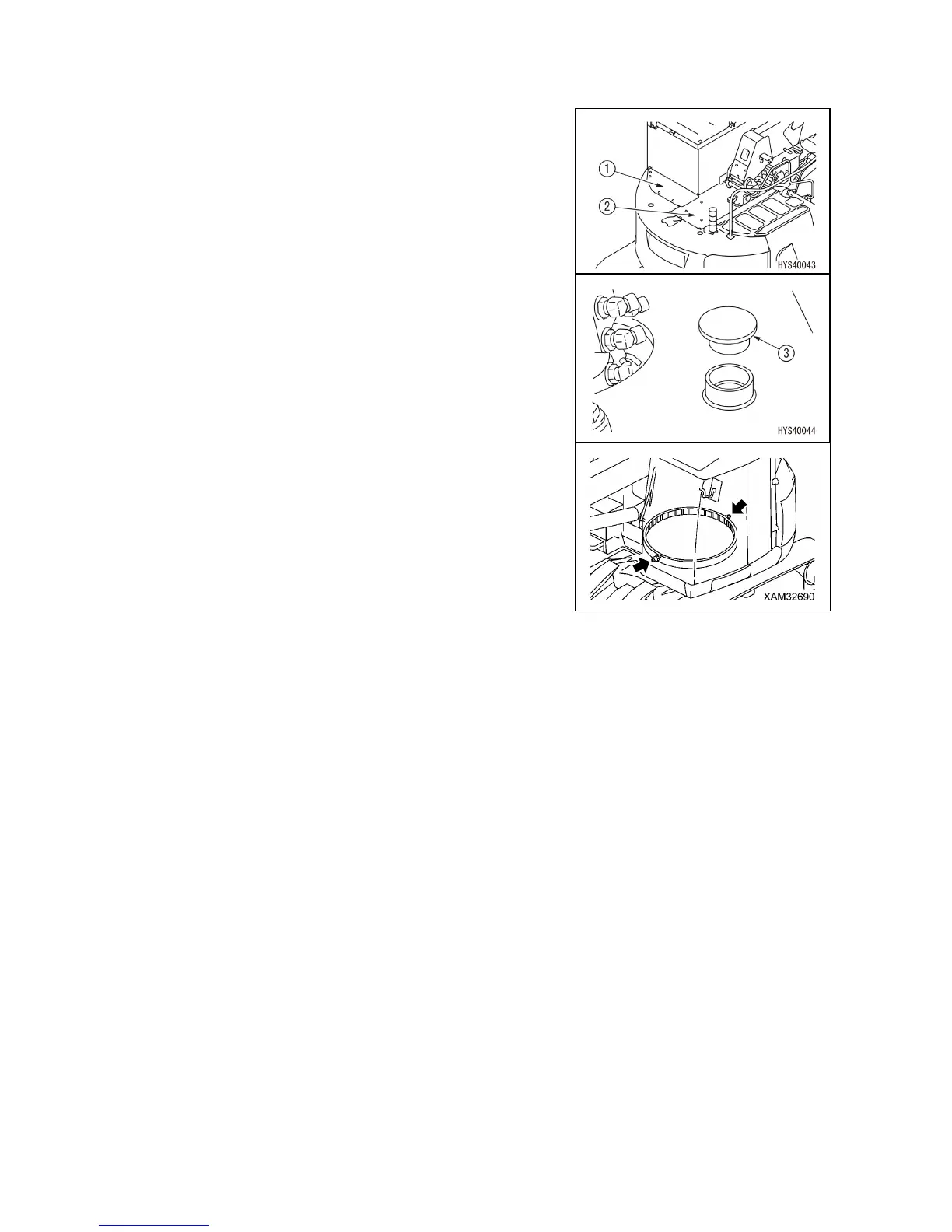

1. Remove bolts of tank cover (1) and post cover (2) to
take off the cover.
2. Remove the rubber plug (3) on the top of the frame.
3. Insert a scale (rule) into the grease in the pinion
passing zone to ensure that its level is at a height of
4mm or more. If it is not enough, refill the grease.
4. Ensure that the grease is not contaminated or white.
If any white or contamination is detected, the grease
must be replaced. Contact us or our sales service
agency for the replacement.
Total grease quantity: 5.5 liters.
Mount the rubber plug.
5. Attach the tank cover (1) and post cover (2).
[3] GREASING SWING CIRCLE
1. Inject grease with a grease gun through the
arrow-marked grease plug shown in the sketch at
right.
2. Wipe off old grease squeezed out after greasing.
