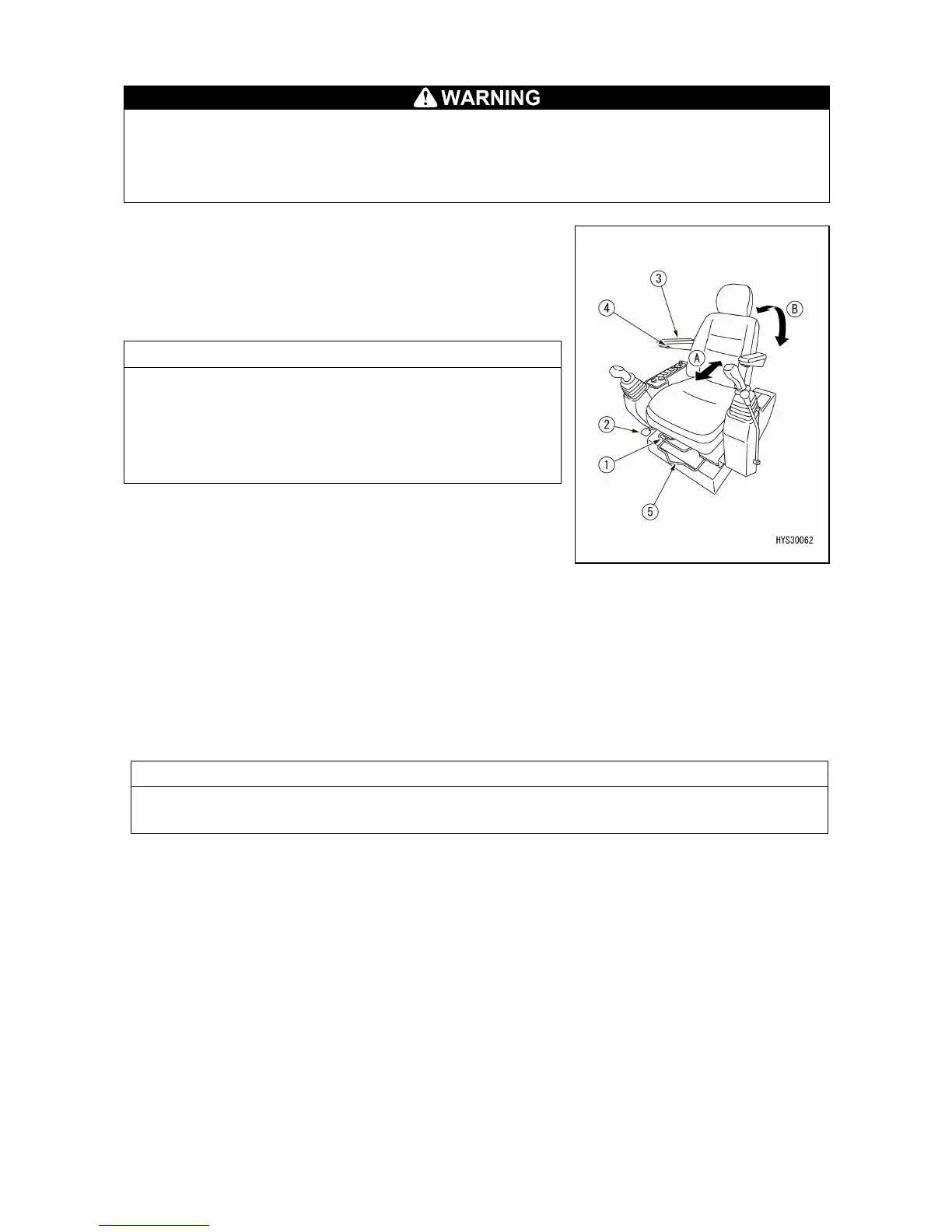

[11] ADJUSTING THE OPERATOR'S SEAT
• Adjust the seat before operation or when a driver changes.
• Adjust the seat with your back pushed against the seat back of the driver seat so that you
can sufficiently operate the operation levers, switches and accelerator pedal.
• Be sure to stop the engine before adjusting the driver seat.
[A] FORE AND AFT ADJUSTMENT OF SEAT
Pull the lever (1) upward, adjust the seat to the desired
position and release your hand from the lever (1).
[B] RECLINING ADJUSTMENT OF SEAT
NOTES
The reclining amount of the seat is large when the seat
is moved forward and becomes smaller as the seat
moves backward.
Return the seat back to the original position when
moving the seat backward.
Pull the lever (2) upward, adjust the seat back to the easy-to-
operate position and release your hand from the lever (2).
Bring your back into intimate contact with the seat back for
adjustment. The seat back may suddenly return if your back is
off.
[C] ANGLE ADJUSTMENT OF ARM REST
The arm rest (3) can be raised up to the angle of approximately 90 degrees by hand. You can make
fine adjustments of the arm rest (3) angle vertically by turning the dial (4) on the lower part of the
arm rest (3).
Arm rest adjustment angle: 30 degrees
NOTES
The arm rests are designed to be raised automatically if the seat back is folded forward
without raising the arm rests (3).
[D] FORE AND AFT ADJUSTMENT OF WHOLE SEAT
Pull the lever (5) upward, adjust the seat to the desired position and release your hand from the
lever (5).
The seat, right and left work equipment operation levers and lock lever slide (move) together.
Fore and aft adjustment amount: 80 mm (8 stages)
