18. Put the wire rope (12) through the wire socket (37), as
removed in 13 above, and set the rope wedge (41) to position
(a). Pull the wire rope (12) firmly to the direction of the arrow.

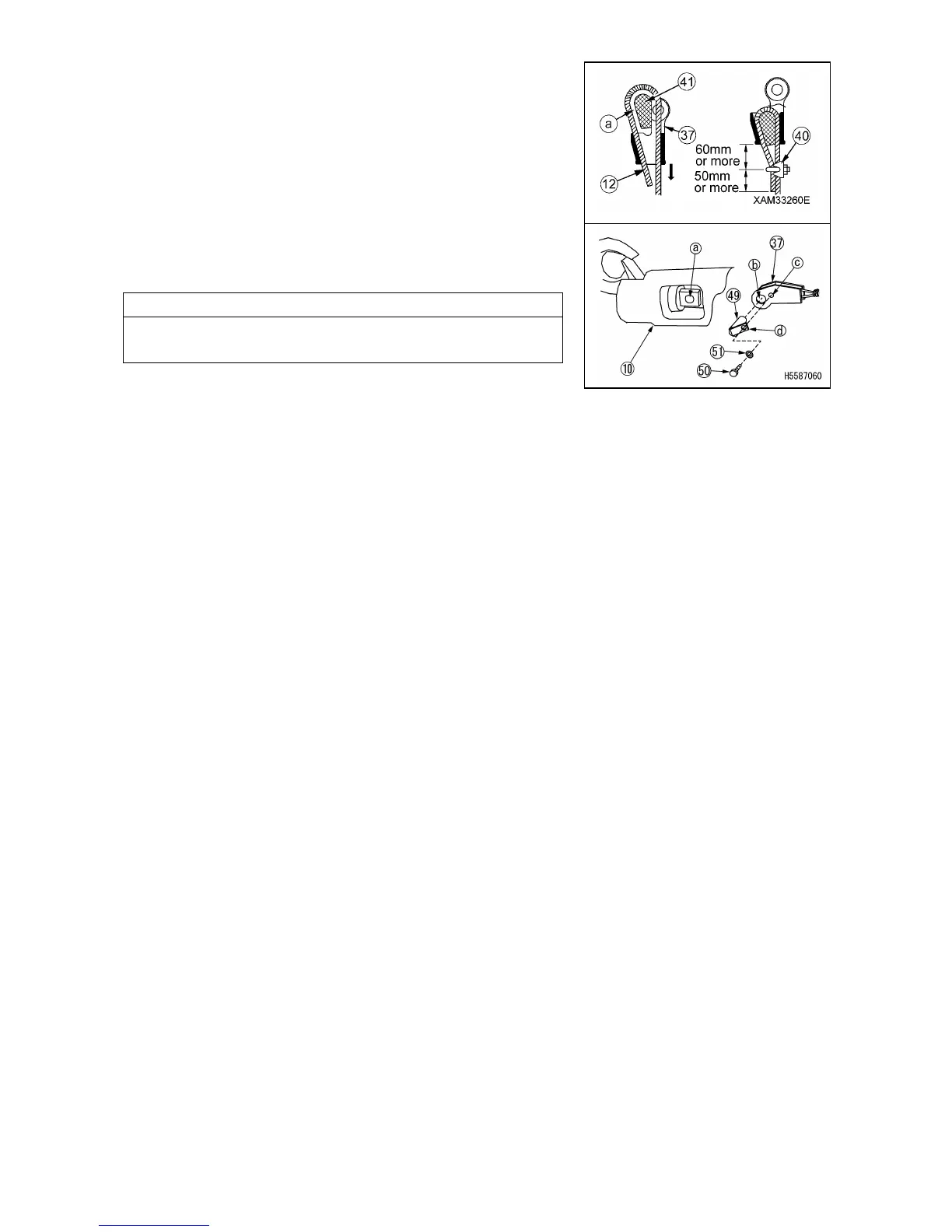

19. Install the rope clip (40) to the wire rope (12). Refer to the
Figure on the right for the rope clip position.
20. Insert the wire socket (37) into connection base (a) inside the
hook (10). Adjust the holes (a, b) of both and insert a pin (49),
then secure it with end plates (51) and bolts (50).
NOTES
The hook (10), pin (49),
bolts (50) and end plates (51) are
specific Fly-jib parts and packaged separately.
