331

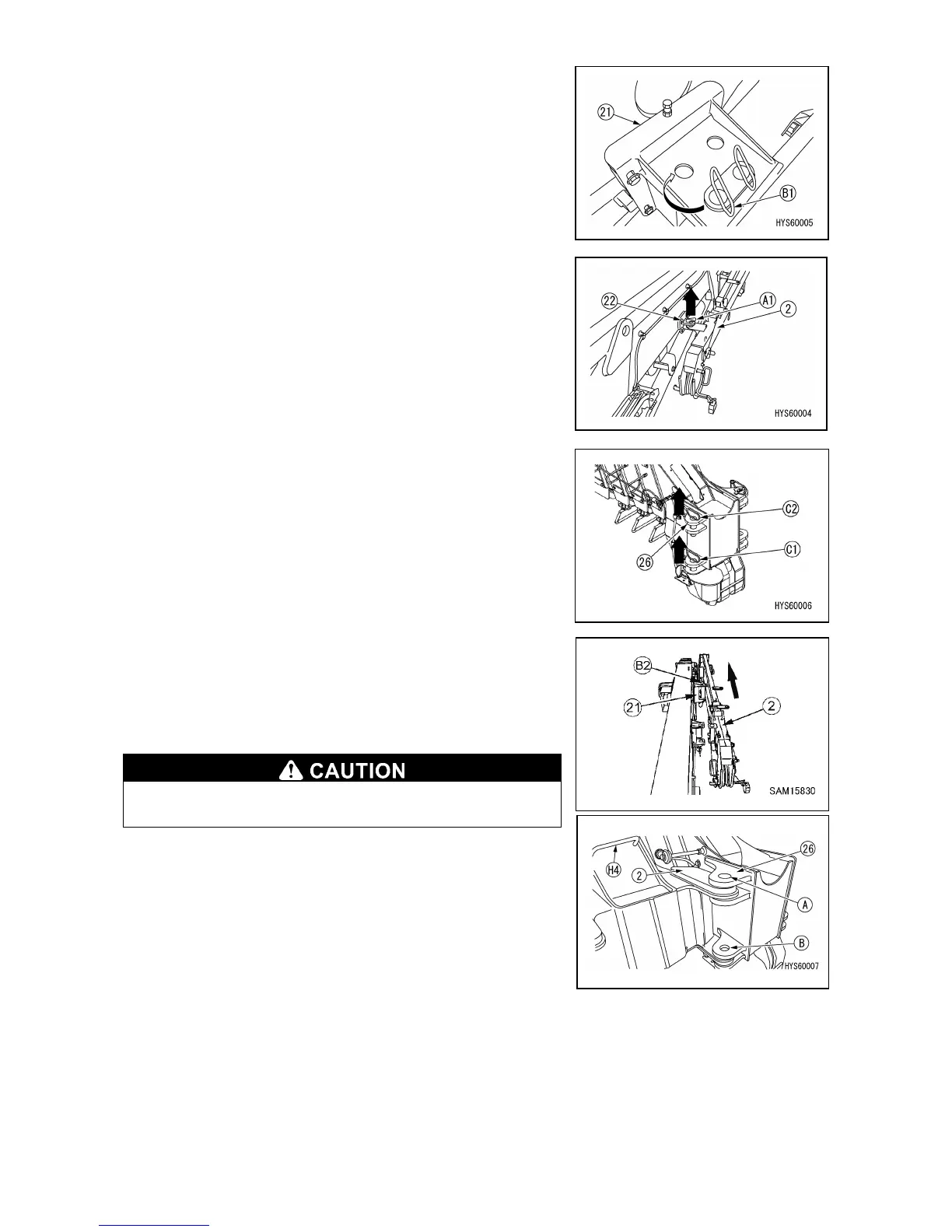

1. Pull the linchpin of the position pin (B1) of the stowage bracket
A (21) and pull out the position pin (B1).
Insert the removed position pin (B1) into the hole for pin
stowage at the back of the stowage bracket A (21). Securely
lock with the linchpin after insertion.
2. Pull the linchpin out from the position pin (A1) in the Fly-jib
bracket B (22) to pull out the position pin (A1).
3. Pull out the position pins (C1, C2) from the bracket (26) on the
right side of the main boom tip.
4. Holding the handle (H4) of the No. 1 Fly-jib (2) with the
position pin (B2) of the stowage bracket A (21) as a fulcrum,
pull it out to the Main boom tip side and align the bracket (26)
holes (A, B) on the right side of the Main boom tip with the hole
positions of the No. 1 Fly-jib (2) connection.
When pulling out the No. 1 Fly-jib (2), hold the handle (H4)
instead of the pin holes to perform work.
To Next Page
