9. Hang wire rope for lifting on the No. 1 Fly-jib (2) and sling it
temporarily.
10. Pull out the linchpins of the position pins (C1, C2) and draw
out the position pins (C1, C2).
11. Operate the crane and lift the No. 1 Fly-jib (2) to remove.

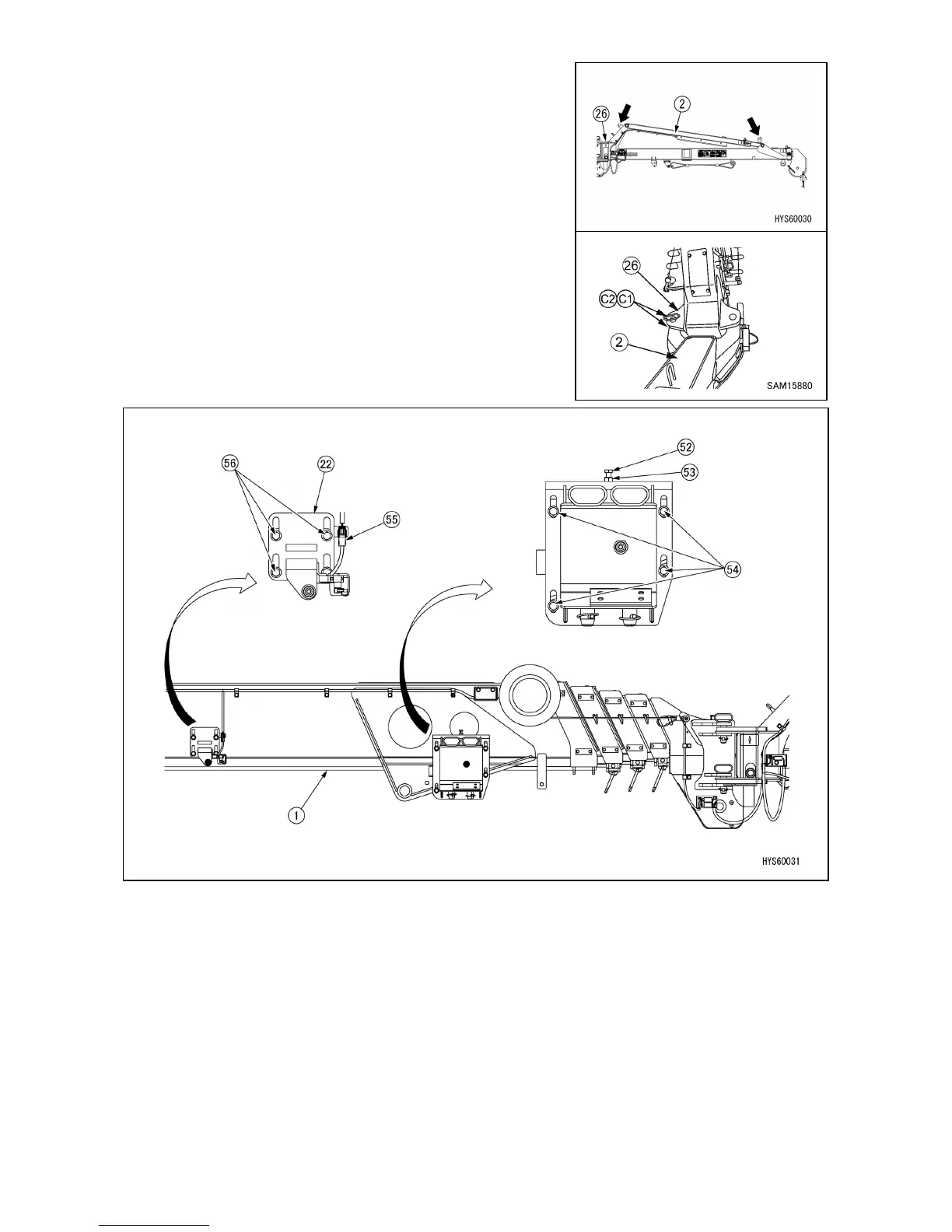

12. Loosen the nut (53) of the Fly-jib stowage bracket A (21) and turn the adjusting bolt (52)
counterclockwise to loosen.
13. Remove the Fly-jib stowage bracket A (21) from the main boom (1) by unscrewing 4 mounting bolts
(54).
14. Disconnect the wiring connector (55) of the Fly-jib stowage detection limit switch at the side of the
Fly-jib stowage bracket B (22).
15. Remove the Fly-jib stowage bracket B (22) from the main boom (1) by unscrewing 4 mounting bolts
(56).
