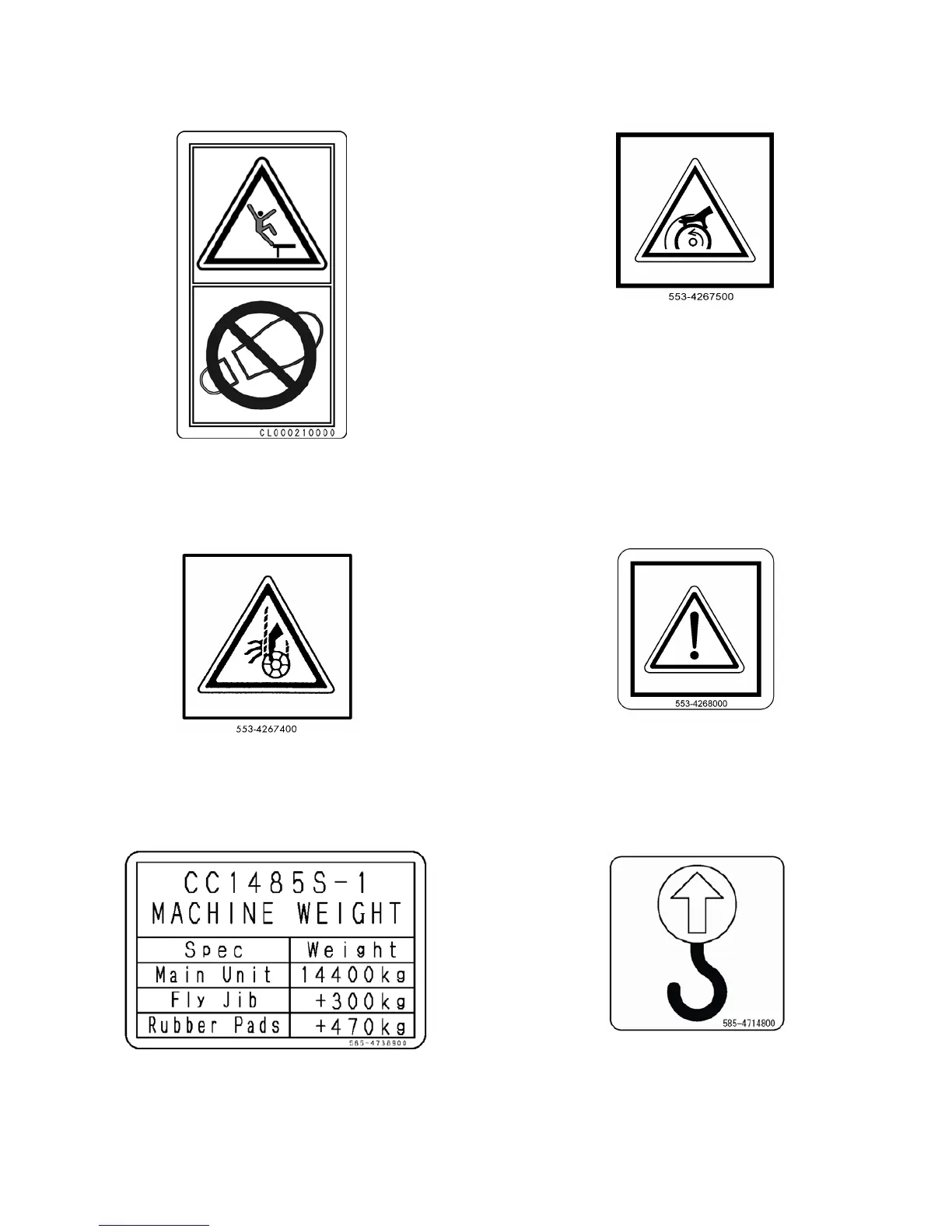

(23) Cautions on the fenders

(CL000210000)

(24) Warning for winch (553-4267500)

(25) Caution against being entangled

by the hook block (553-4267400)

6) Warning (553-4268000)

7) Body mass indication

(585-4738900)

8) Hoisting position

(585-4714800) (2 spots)
