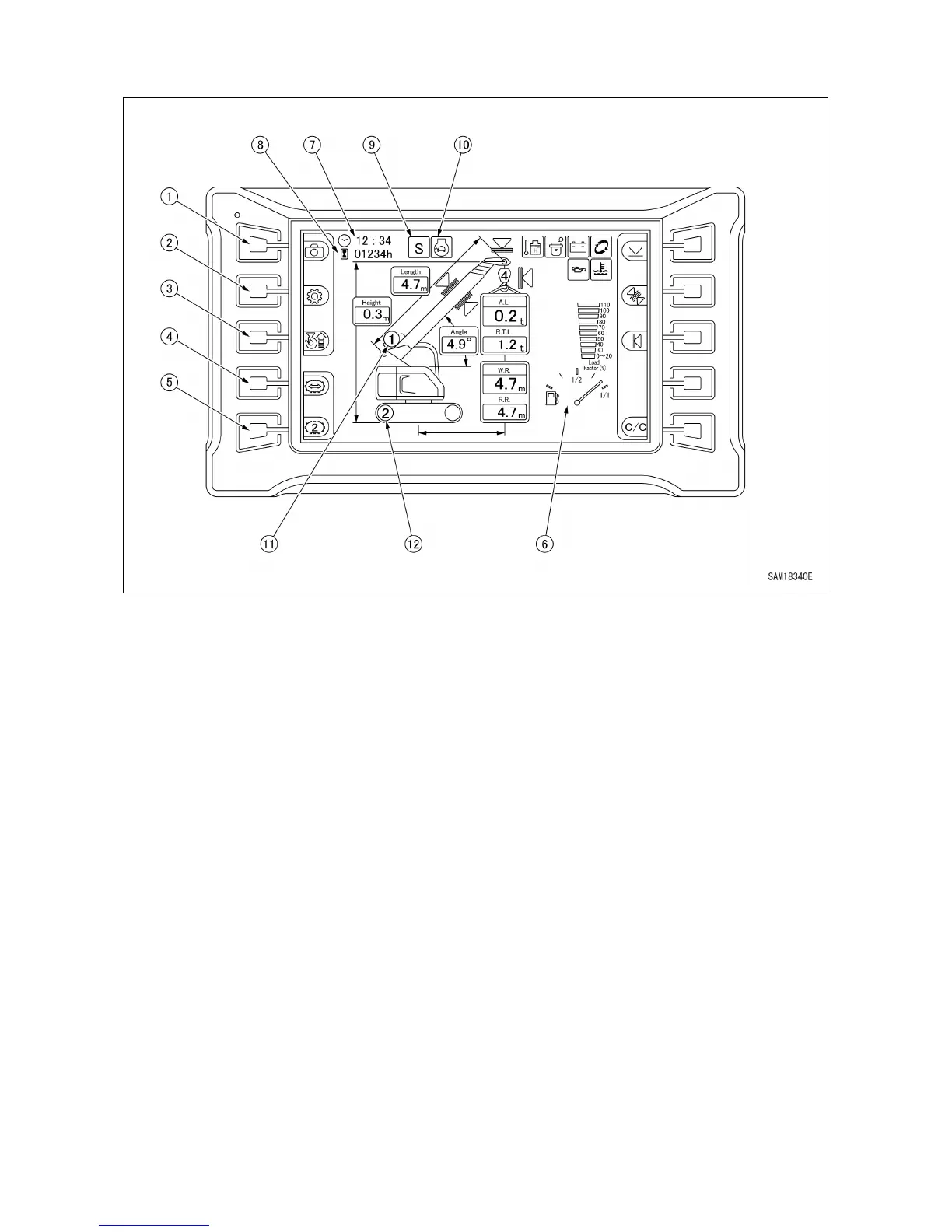

[2] TOP SCREEN

(1) Rear view camera selector switch

(2) User mode switch

(3) Hook storage switch

(4) Travel mode selector switch

(5) Travel 1st speed/2nd speed selector

switch

(6) Fuel gauge

(7) Clock display

(8) Hour meter display

(9) Working mode display

(10) Auto deceleration display

(11) Winch 1st speed/2nd speed display

(12) Travel 1st speed/2nd speed display

See "OPERATION 2.4.4 MOMENT LIMITER FUNCTIONS" for the name of the moment limiter parts.
