Maggi JUNIOR 640 - Worktable Setup and Blade Guard Fitting

14
2-6 SETTING UP THE WORKTABLE

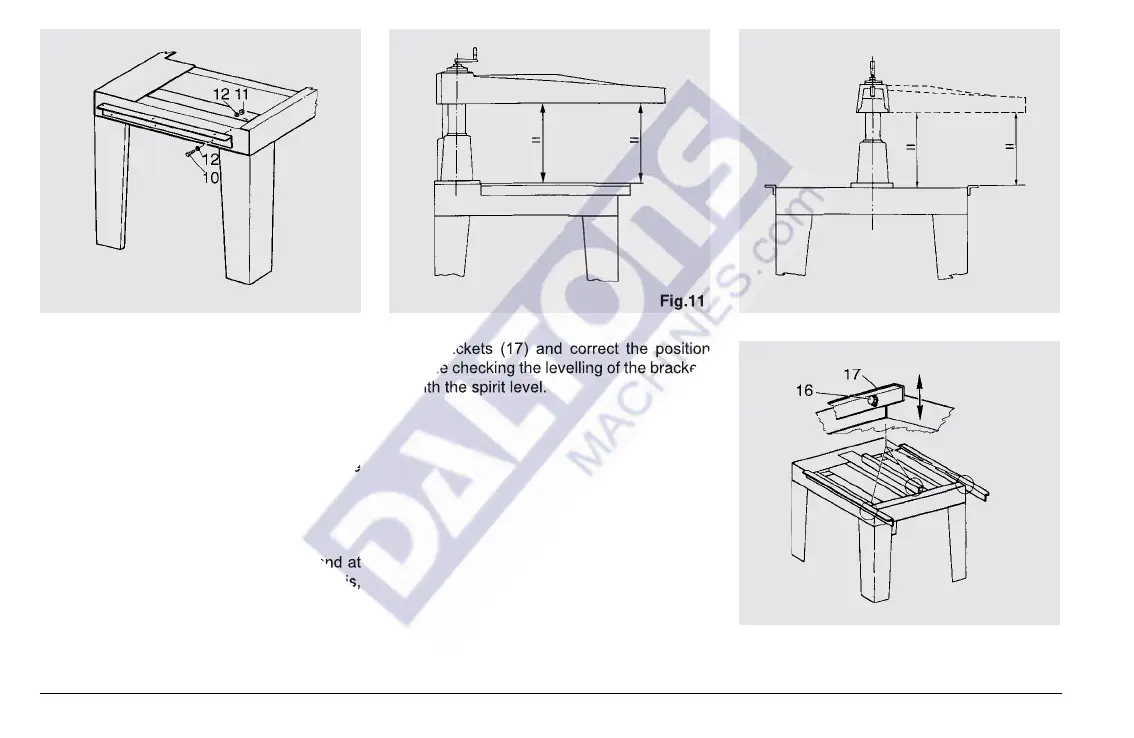

Fit the worktable supporting brackets to the
bench as shown in fig. 10. Do not tighten the
screws until the brackets have been adjusted.
Proceed as follows to check the levelling of the
brackets and the perpendicularity of their plane
to the tool plane:
1) Take a spirit level
2) The brackets must be both levelled and at
the same distance from the arm. To do this,
take advantage of the movability of the arm
as shown in figures 11 and 12. Take the
measurements while the arm is over the
brackets. If necessary, loosen screws (16)
Fig.11Fig.10 Fig.12
Fig.13
of brackets (17) and correct the position
while checking the levelling of the brackets
with the spirit level.
Fig.11
brackets and the perpendicularity of their plane
2) The brackets must be both levelled and at
the same distance from the arm. To do this,
of brackets (17) and correct the position
while checking the levelling of the brackets
with the spirit level.
