24

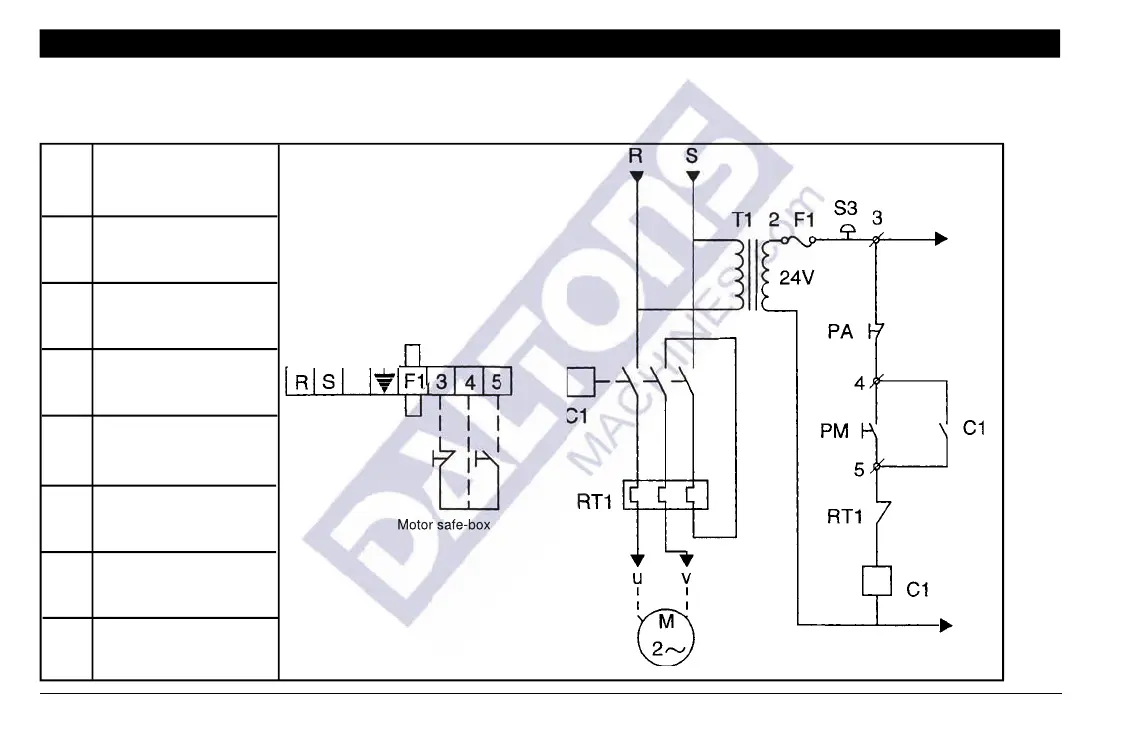

CHAPTER 5 - ELECTRICAL DIAGRAM
5-1 MONOPHASIC MOTOR - MOTOR SAFE-BOX
Emergency button
Stop button
Running button
Contactor
Temperature relay
Transformer
Fuse
Motor
S3
PA
PM
C1
RT1
T1
F1
M
LINE
Terminal board
Motor safe-box
Motor safe-box
