Maggi JUNIOR 640 - Wiring Connection to Terminal Board

27
UK

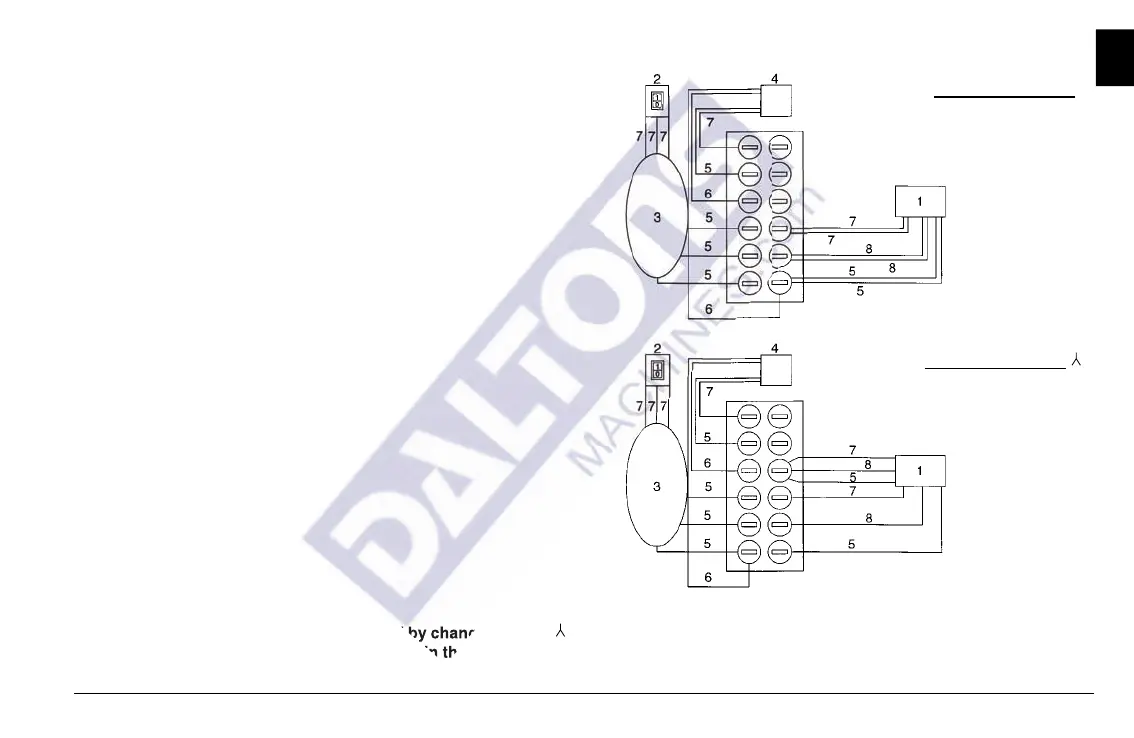

5-4 WIRING CONNECTION TO TERMINAL BOARD
1 - Three-phase motor
2 - Switch
3 - Motor safer
4 - Exhaust brake feeder
5 - Black
6 - White
7 - Red
8 - Green
N.B. If the motor power voltage is changed by changing the ∆- connection to the terminal box, check the input (A) on the motor plate
and change the magnetothermal switch in the overload cutout box! To be performed by skilled staff only.
Three-phase motor ∆
V 220 - 60 Hz
V 220 - 50 Hz
Three-phase motor
V 440 - 60 Hz
V 380 - 50 Hz
N.B. If the motor power voltage is changed by changing the
and change the magnetothermal switch in the overload cutout box! To be performed by skilled staff only.
