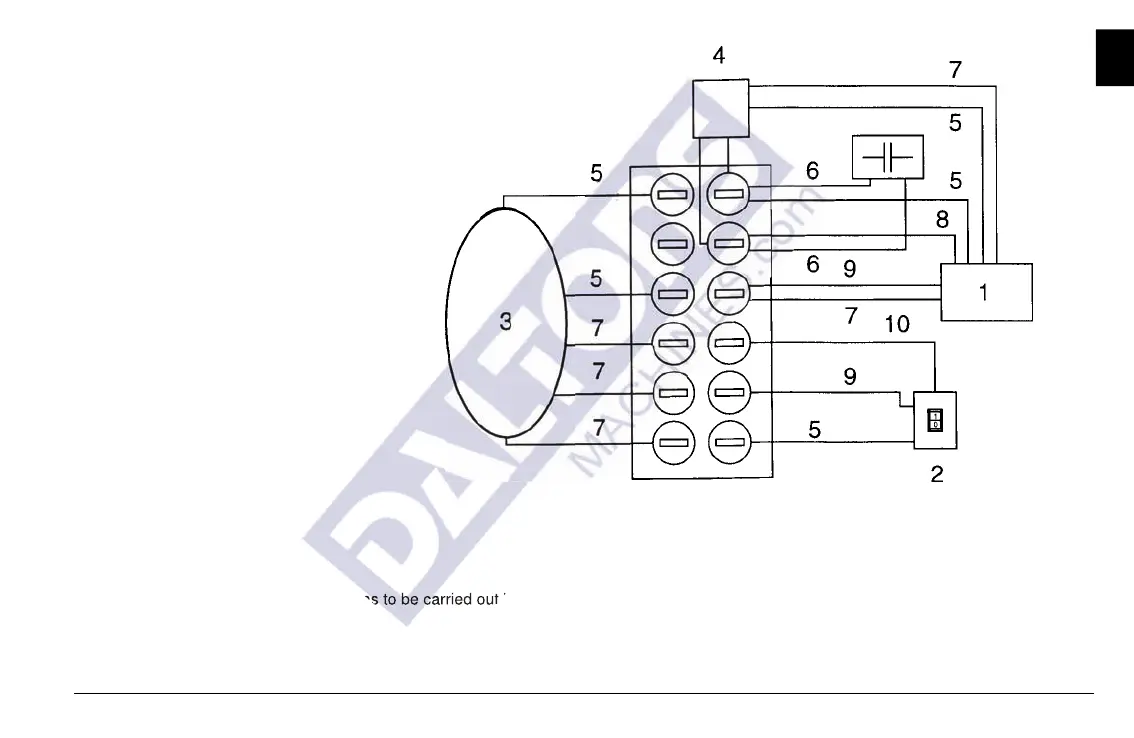

5-2 WIRING CONNECTION TO TERMINAL BOARD
N.B.: This kind of electrical connection has to be carried out by qualified personnel
MONOPHASIC MOTOR
V 220 50 Hz. HP 3
1 - Monophasic motor
2 - Switch
3 - Motor safer
4 - Exhaust brake feeder
5 - Black
6 - White
7 - Red
8 - Green
9 - Blue
10 - Brown
This kind of electrical connection has to be carried out by qualified personnel
