Maggi JUNIOR 640 - Mains Connection and Machine Setup

16
WARNING

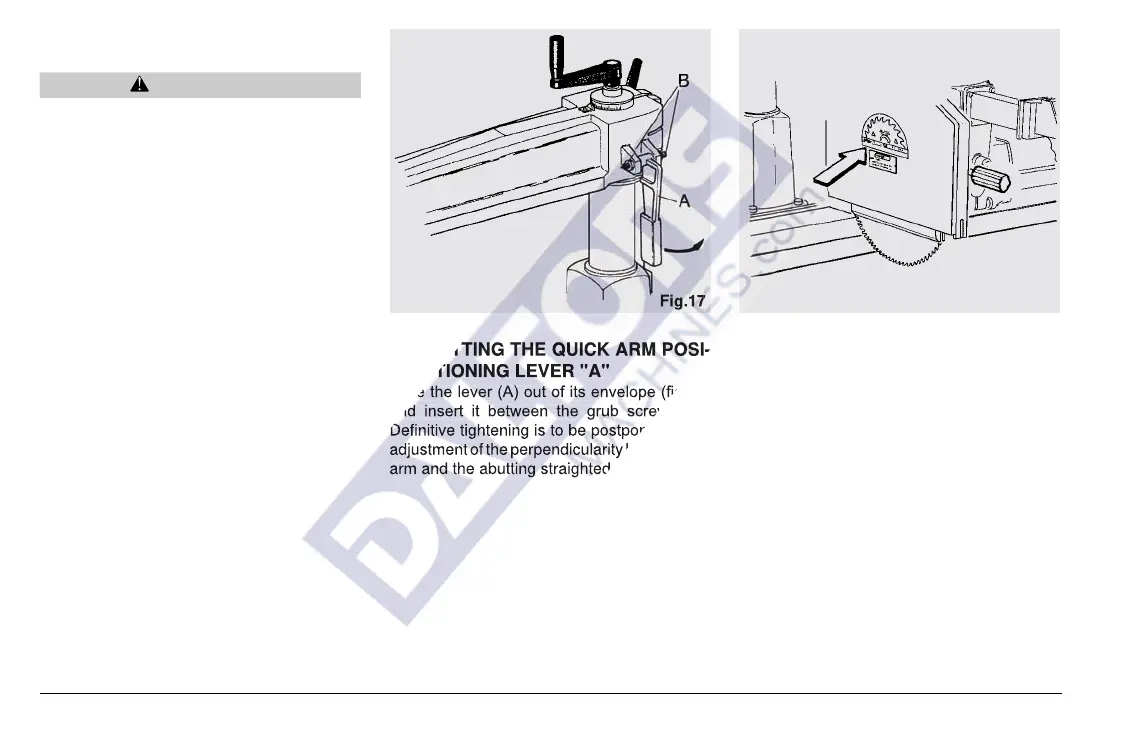

Fig.17
2-9 FITTING THE QUICK ARM POSI-
TIONING LEVER "A"
Take the lever (A) out of its envelope (fig.17)
and insert it between the grub screws (B).
Definitive tightening is to be postponed to the
adjustment of the perpendicularity between the
arm and the abutting straightedge.
2-10 CONNECTING THE SQUARING
MACHINE TO THE MAINS
The machine is supplied with a plug-in feeder
cable. Connect the feeder cable to the mains
current tap after making sure that the electric
motor supply voltage and frequency are the
same as those provided by the mains.
A plate shows the correct voltage and fre-
quency values.
After connecting the machine, make sure that
the blade rotates as required by referring to the
plate located on the blade guard (see figure
18).
Fig.18
operation in the reverse order to position the
blade into its housing.
Mind that the direction of the bladeís teeth
is the same as shown in Fig. 16. Blades
must have a central hole of Ø 30 mm (Ø 1")
and max diameter of Ø 400 mm (Ø14"), Ø
450 mm (Ø 16") depending on the casing
and motor (shaft in inches) fitted on the
machine
Fig.17
Fig.17
2-9 FITTING THE QUICK ARM POSI-
TIONING LEVER "A"
Take the lever (A) out of its envelope (fig.17)
and insert it between the grub screws (B).
Definitive tightening is to be postponed to the
adjustment of the perpendicularity between the
arm and the abutting straightedge.
