14. The Winding Resistance test will begin.

 Voltage (V): The MVCT displays the real time voltage readings of the secondary winding while

the test is in progress.

 Current (A): The MVCT the real time current readings for the secondary winding while the test is

in progress.

15. At any point of time Test can be terminated by hitting the ABORT button at the top

of the screen.

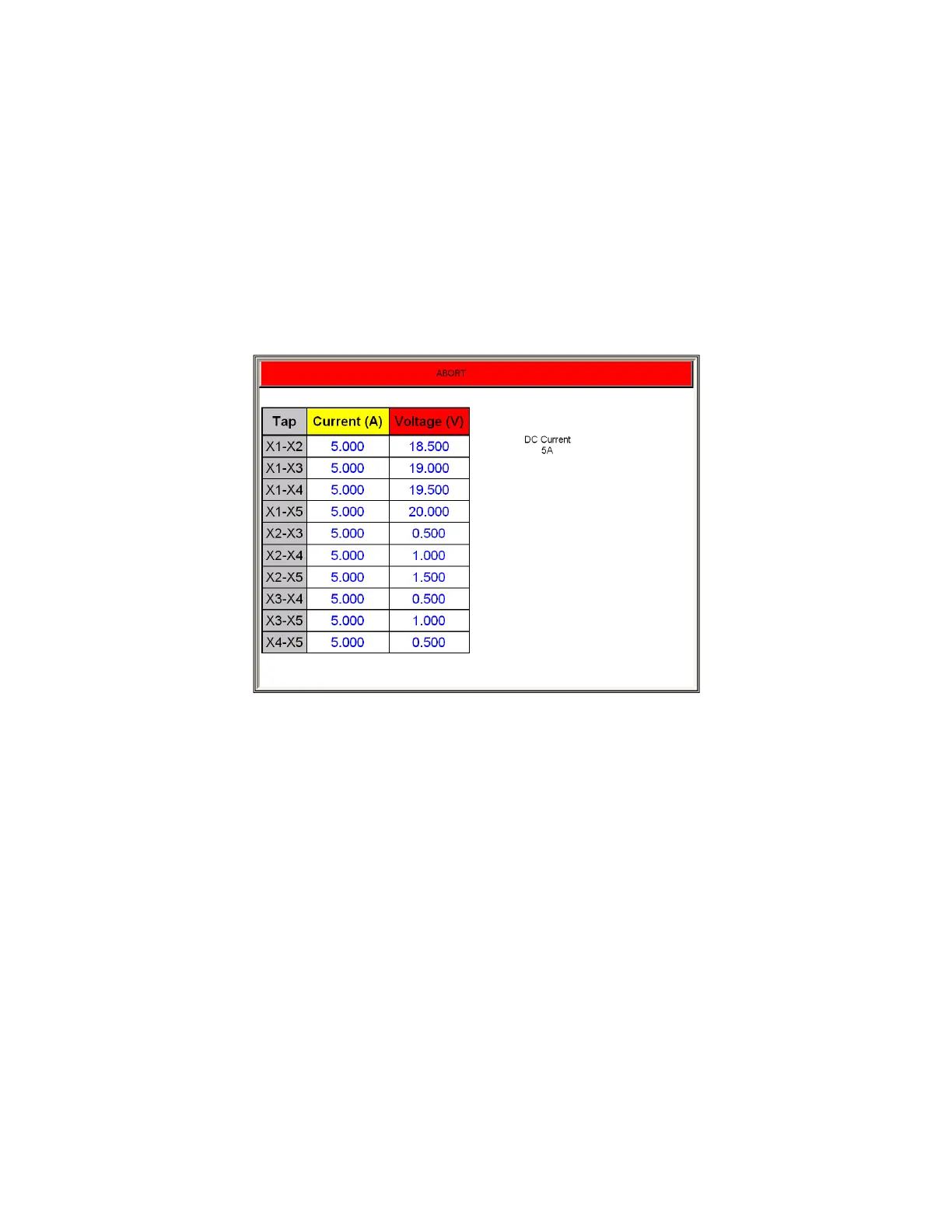

Figure 76 CT Winding Test ABORT

16. Upon completion of all tests, the results can be viewed in the test screen or in a test

report.
