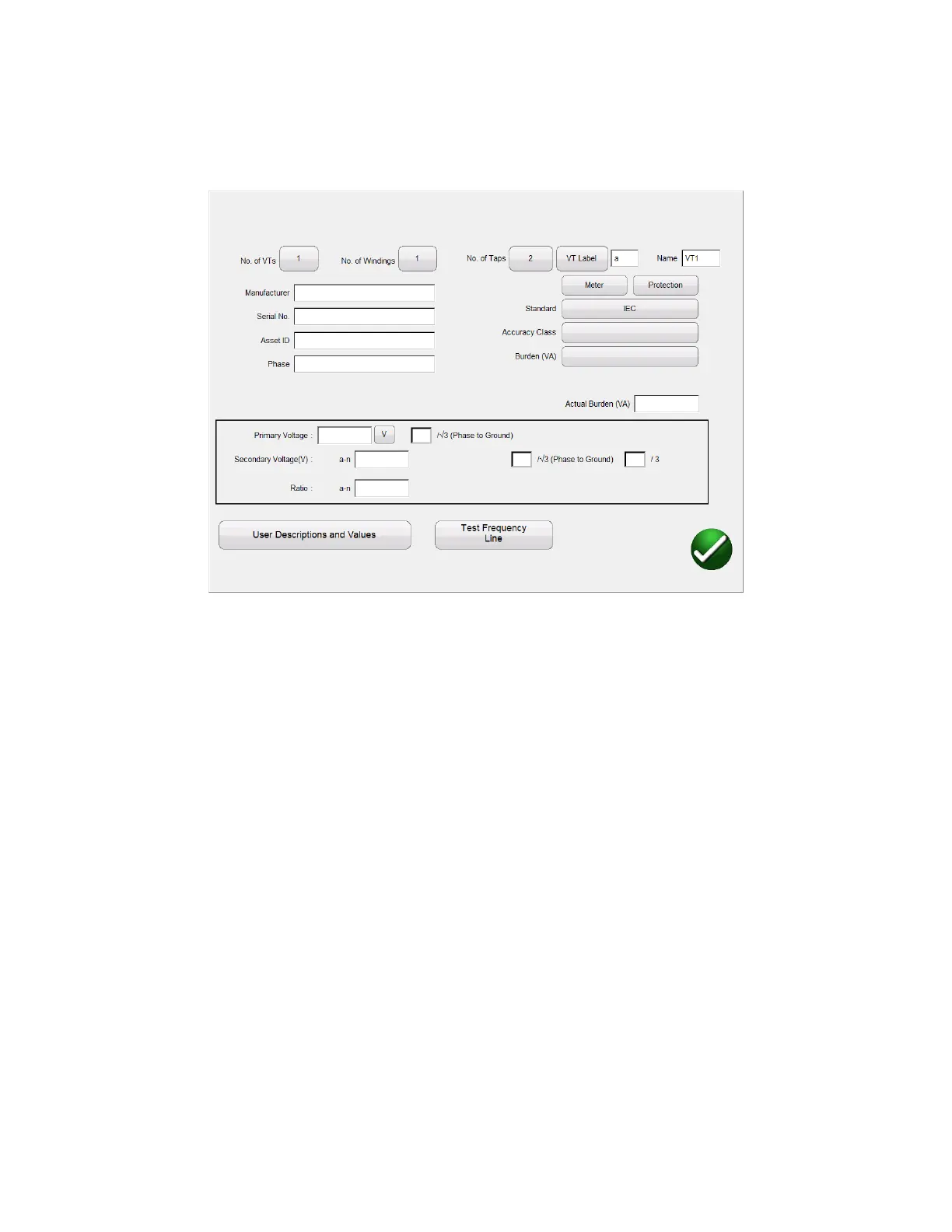

Figure 39 Name Plate Data – VT Testing Mode

Nameplate page is used to fill out the Name plate data of VT under test.

 Number of VTs: Up to 18 VT can be included within one report

 Number of Windings: Currently VT are limited to one winding

 Number of Taps: Currently VT are limited to 2 taps

 VT Label

 VT Name

 Manufacturer: By touching the screen in this location a keyboard will appear that

will allow the user to enter the manufacturer of the VT.

 Serial No: Use the virtual keyboard to fill VT serial no. from the nameplate of the

VT under test.

 Asset ID: This is a user defined field.

 Phase: Can be used to identify the phase that the VT is located on

 Metering or Relaying: Select the type of VT. Depending upon the type of VT selected, the MVCT

will populate the accuracy class selection field with the appropriate classes

 Test Standard: Select which standard will be used when testing the VT. The user can select

between the methods of ANSI or IEC methods.

 Accuracy Class: Use the drop down menu to select the VT accuracy class from available options

such as
