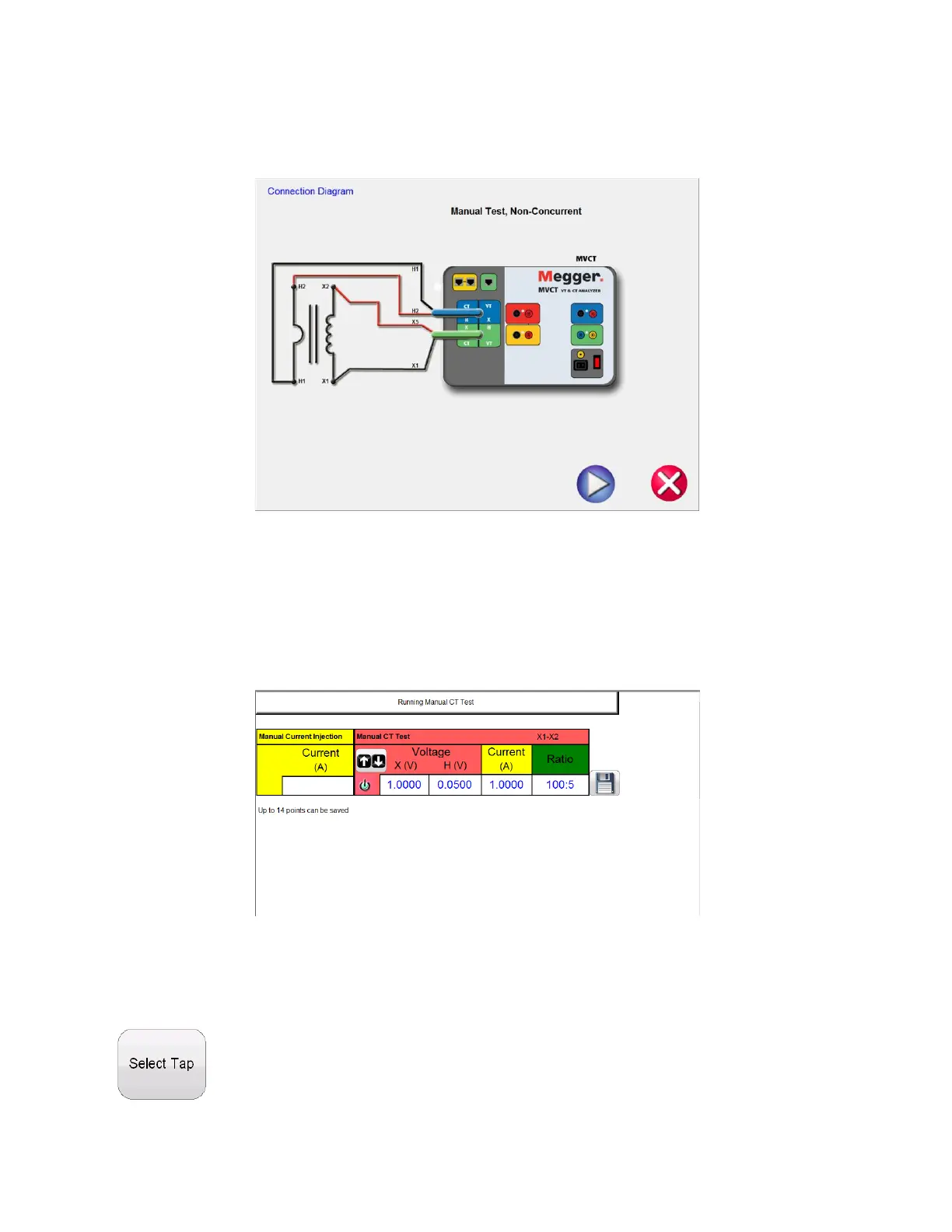

Figure 18 Manual Test Connection Diagram

After the MVCT has begun to inject voltage, the voltage and current readings will be displayed along

with the calculated ratio. In order to ensure accurate results on the ratio, the voltage should be ramped

to a level of at least 10% of the value of the knee point of the CT. The readings should also be allowed to

stabilize.

Manual Saturation Test: To manually run a Saturation test on a CT the user is required to first select

which individual tap is desired
