5.4.1.5 Run All Tests

Selection of Run All Tests button will bring the user to the Test Configuration screen

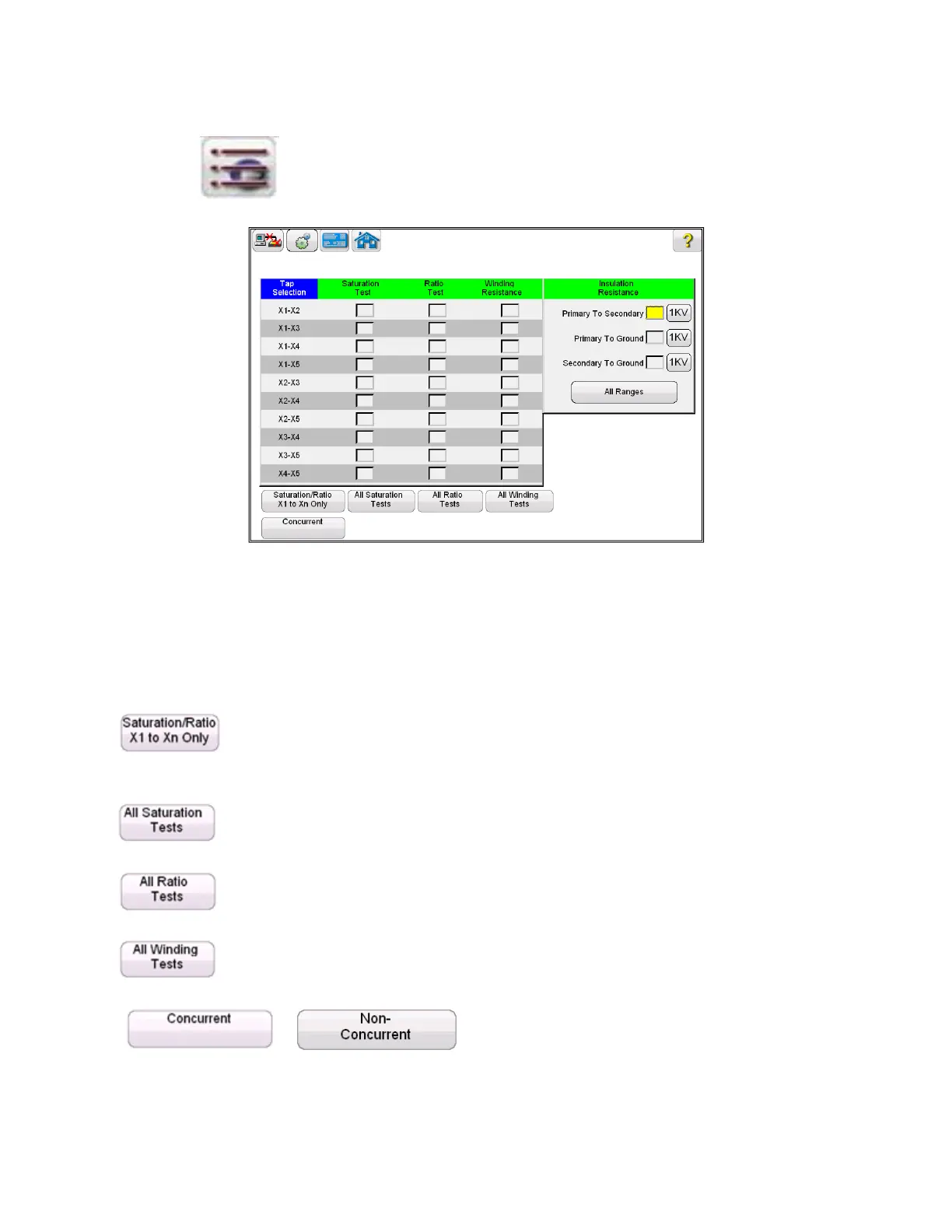

Figure 16 Run All Test Screen

The user can easily configure a test plan for a current transformer by checking the box adjacent to the

desired test of the desired tap. The various buttons at the bottom of the screen can also be used to

easily configure a test:

Used to auto select Saturation and Ratio Test on all external taps. Uses

nameplate “ Number of Taps” to configure

Used to auto select Saturation Test on all taps

Used to auto select Ratio Test on all taps

Used to auto select Winding Resistance Test on all taps

Used to toggle between Concurrent Testing of

all taps and testing tap individually.
