Selection of Winding Resistance Test button from the test configuration screen will bring
the user to the following Winding Resistance Test screen.

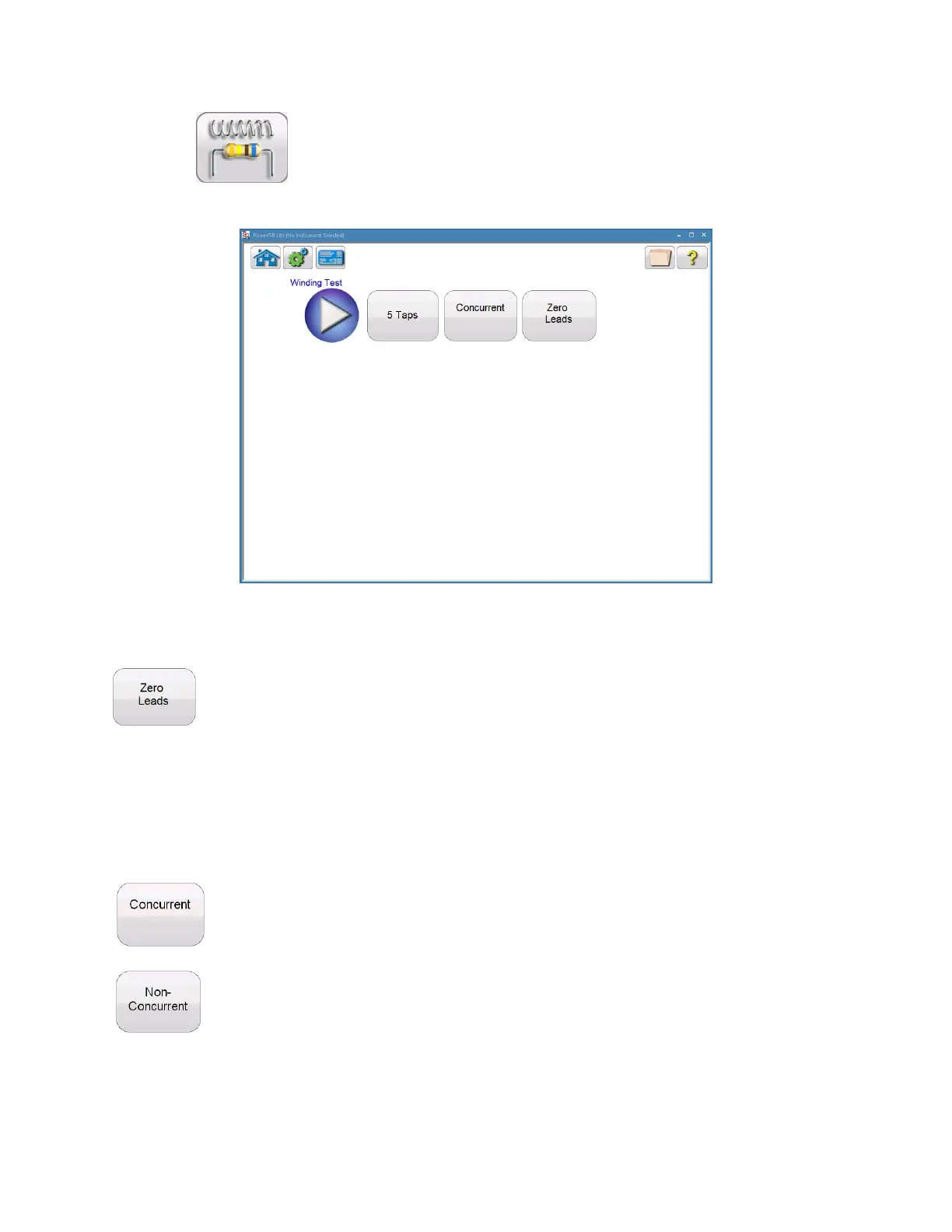

Figure 25 Winding Resistance Test Screen
Use the Zero Leads button to zero out the leads from the measurement. This will ensure
no resistance from the leads is included in the resistance measurement and improve the accuracy of the
measurement.
Within this screen the user can select between Concurrent and Non concurrent Testing
When Concurrent Mode of testing is selected, the user is required to select how many taps is desired to
test simultaneously
